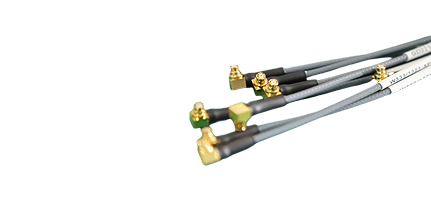

Custom Rf Cable Assembly
PrecisionRF builds custom RF cable assemblies from DC to 110 GHz — flexible, semi-flexible, conformable and rigid — for commercial, laboratory and production test use. Send the connector pair, cable type and length; we return a drawing and a sample before the order is released.
What we build
- Frequency: DC to 110 GHz with the 1.0 mm interface; 1.85 mm (67 GHz), 2.4 mm (50 GHz) and 2.92 mm (40 GHz) are the most common builds

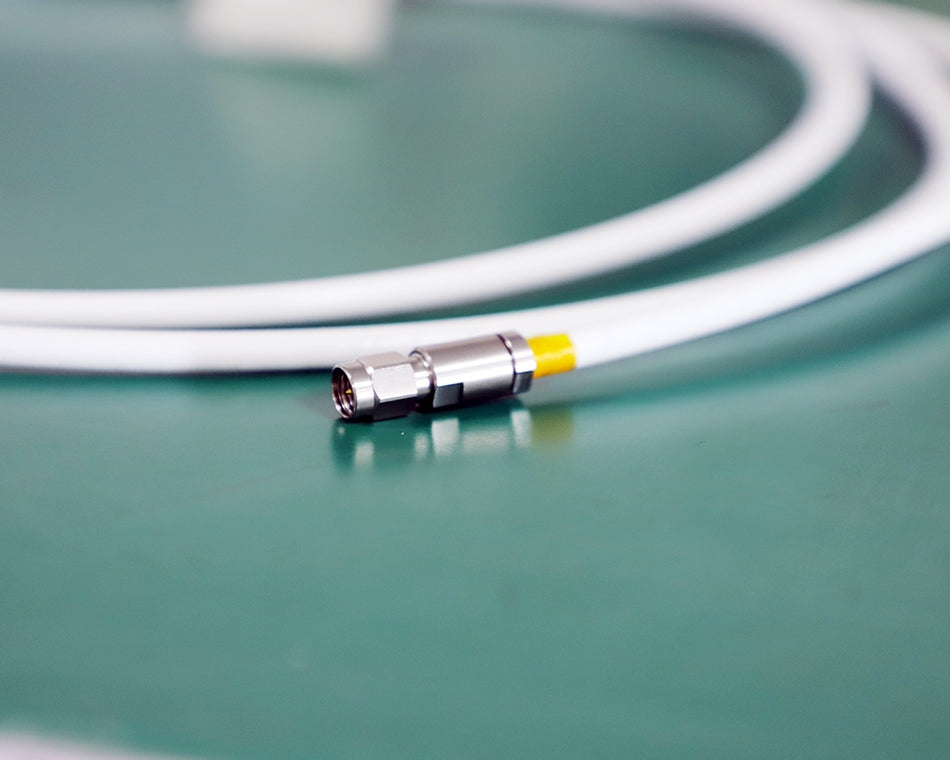

- Cable: .047, .086, RG-316, RG-405, LL142, SF and 400-series low loss — flexible, semi-flexible or armored

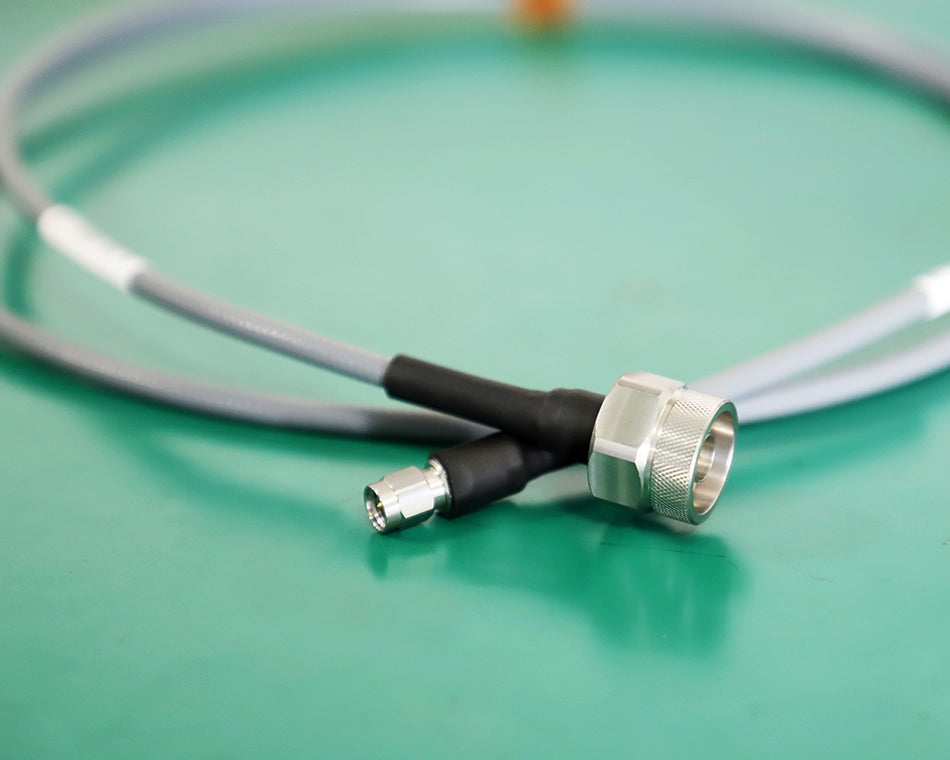

- Connectors: SMA, 2.92 mm, 2.4 mm, 1.85 mm, 1.0 mm, SMP, Mini-SMP (SSMP), N, BNC, TNC and MCX

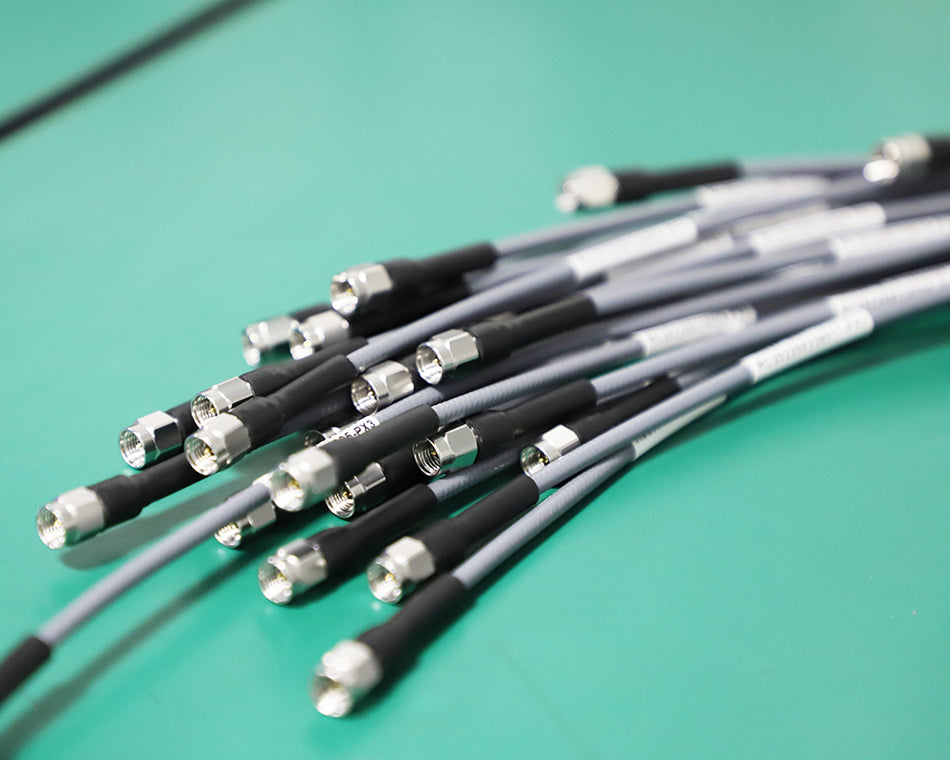

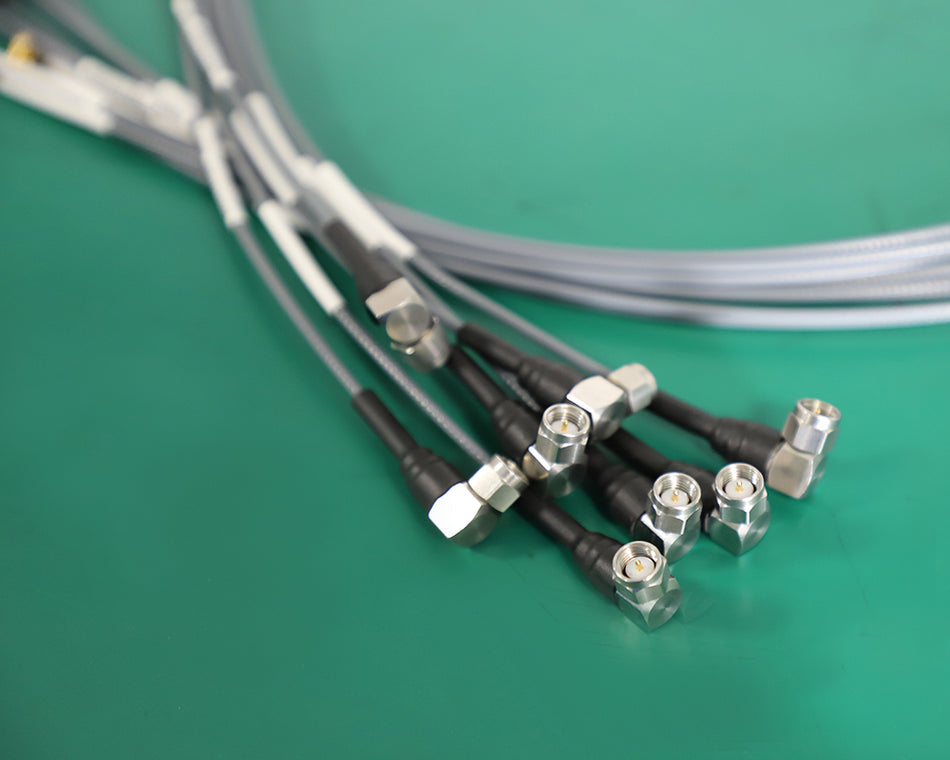

- Options: phase-matched and amplitude-matched sets, right-angle ends, bulkhead feedthroughs, armor, custom labeling and test data
Browse ready-made assemblies

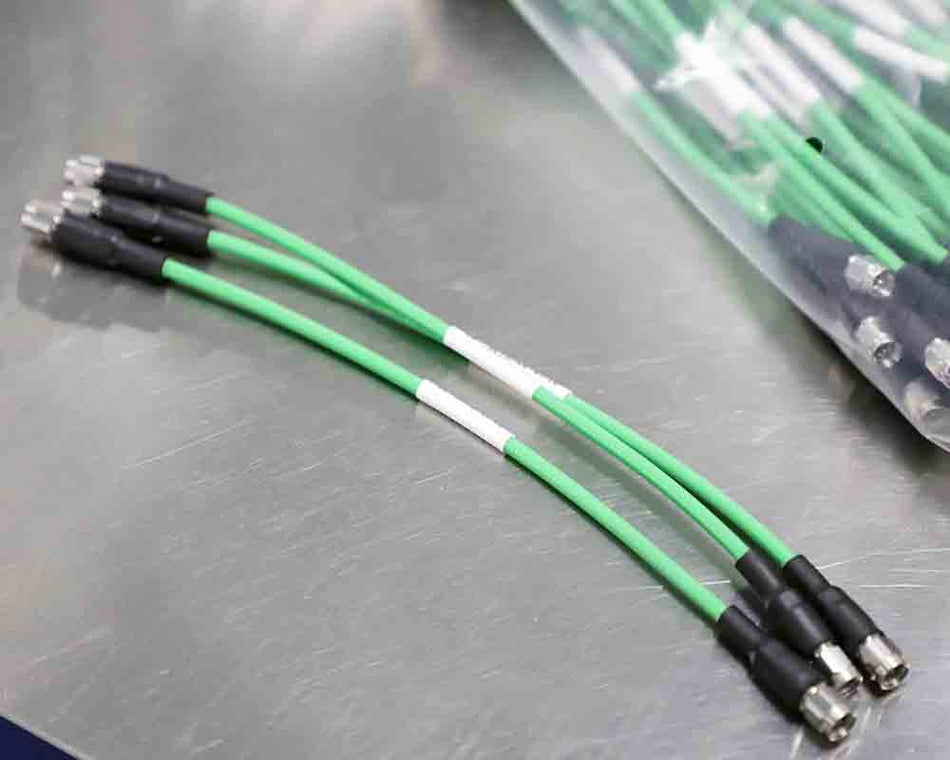

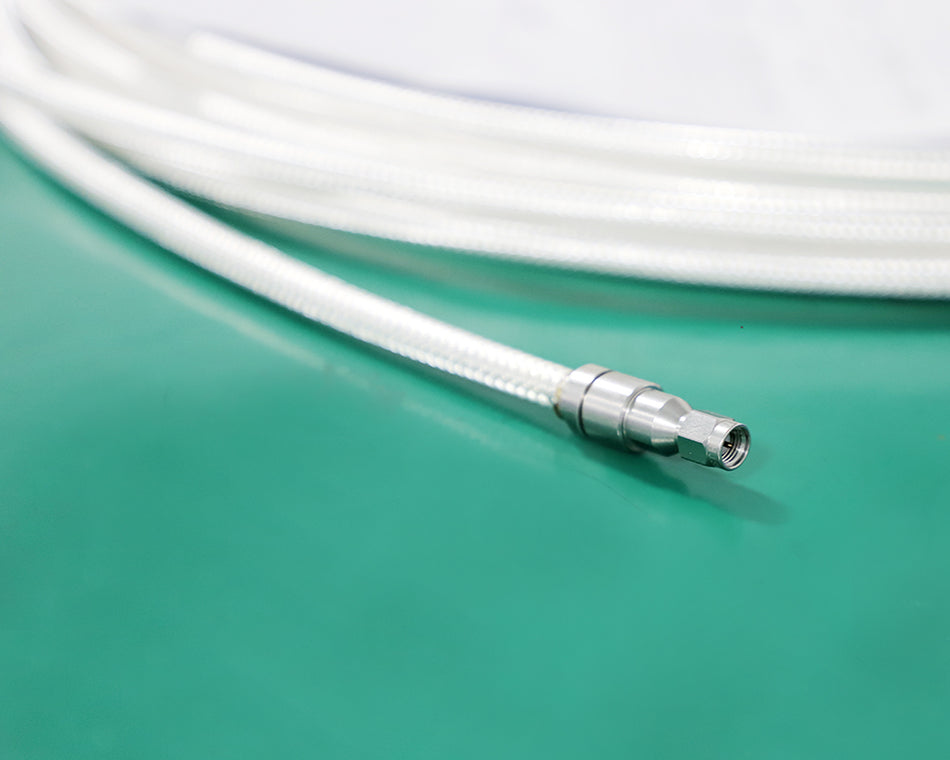

- SMA to SMA cable assemblies

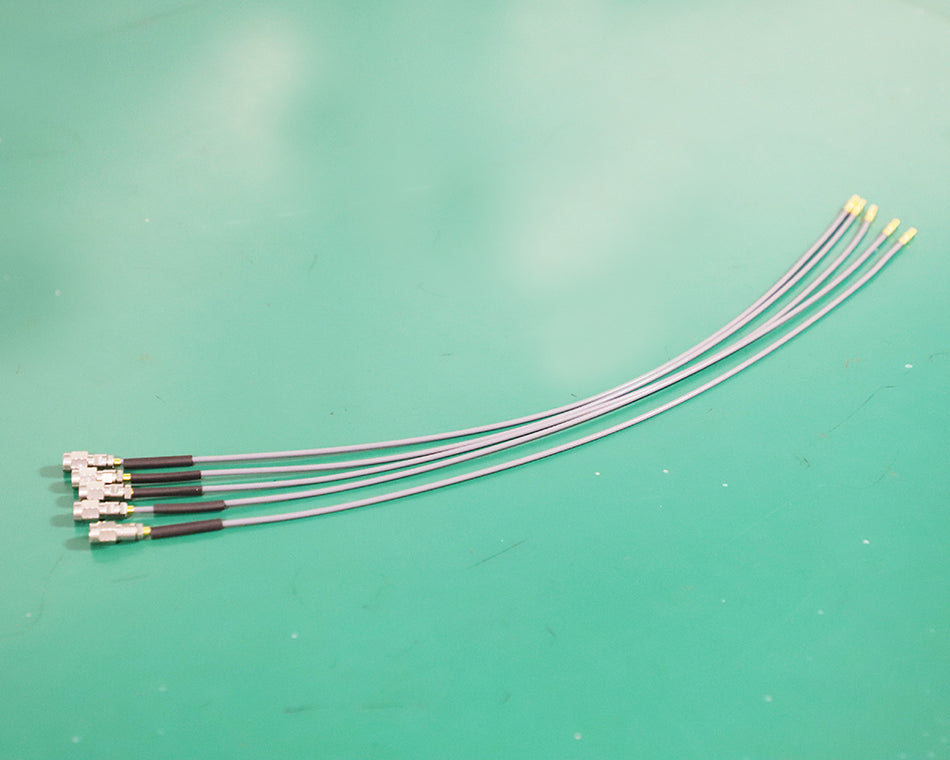

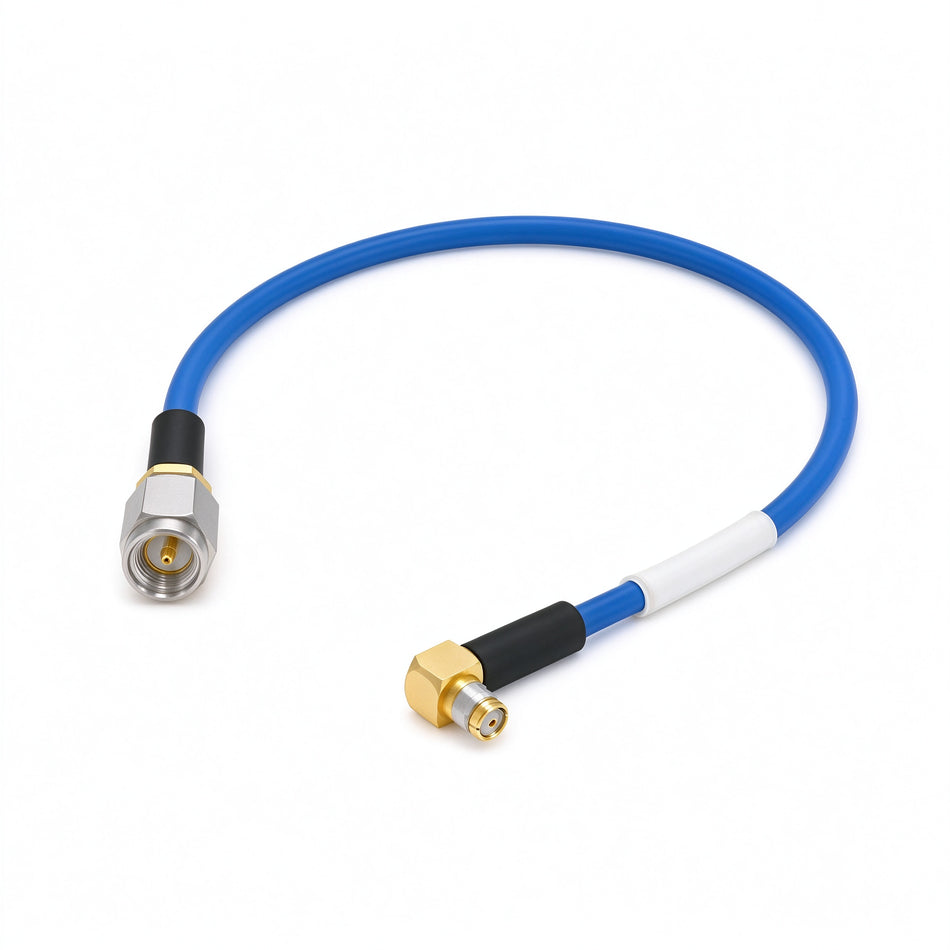

- SMA to SMP cable assemblies

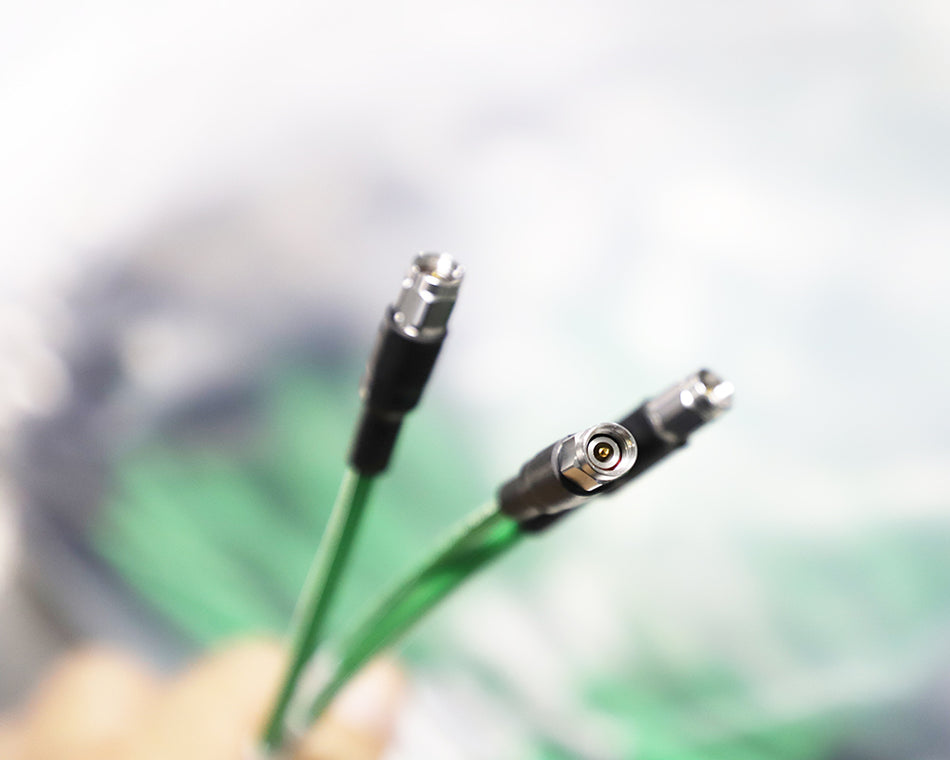

- 2.92 mm cable assemblies
- 2.4 mm cable assemblies
- 1.85 mm cable assemblies
- 1.0 mm cable assemblies

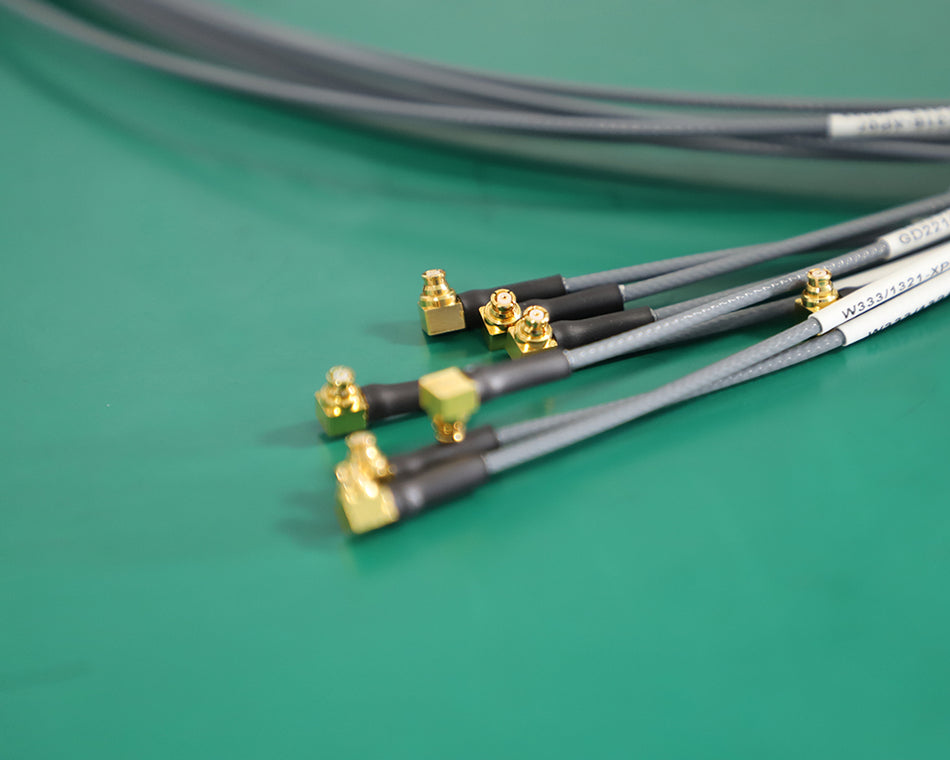

- SMP cable assemblies
- Mini-SMP (SSMP) to 2.92 mm assemblies

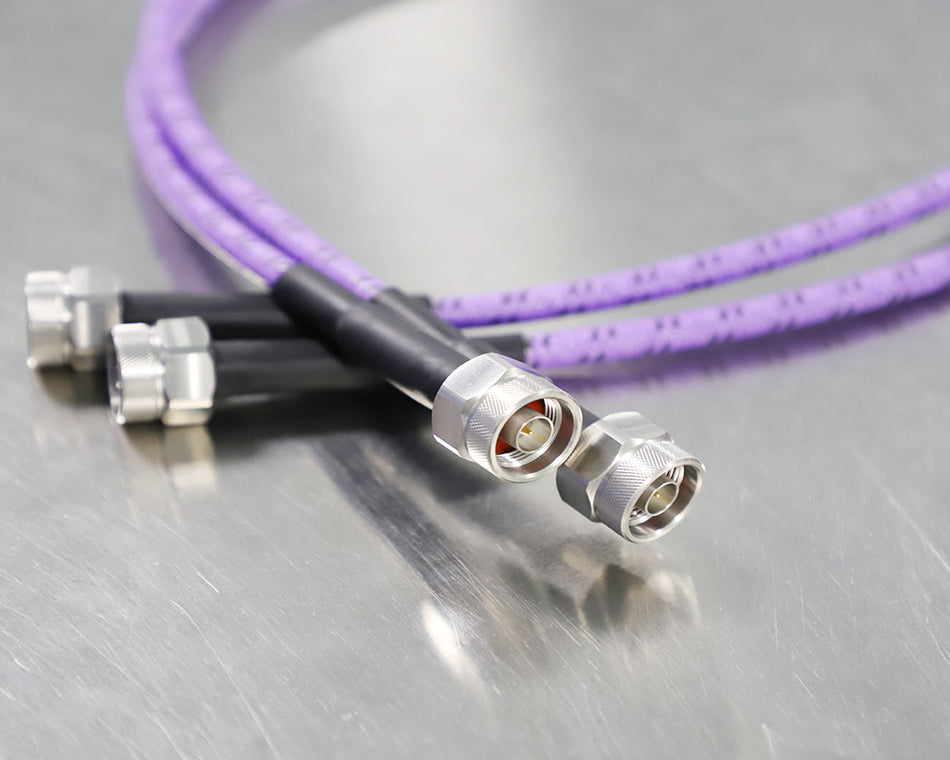

- N type cable assemblies
- BNC cable assemblies
- Coaxial cable by the foot
Stock and lead time
Standard cable and connectors are held in Houston, TX. Lead time depends on cable and connector availability and is confirmed with the quotation — simple builds are usually quick, phase-matched and non-standard builds need longer.
