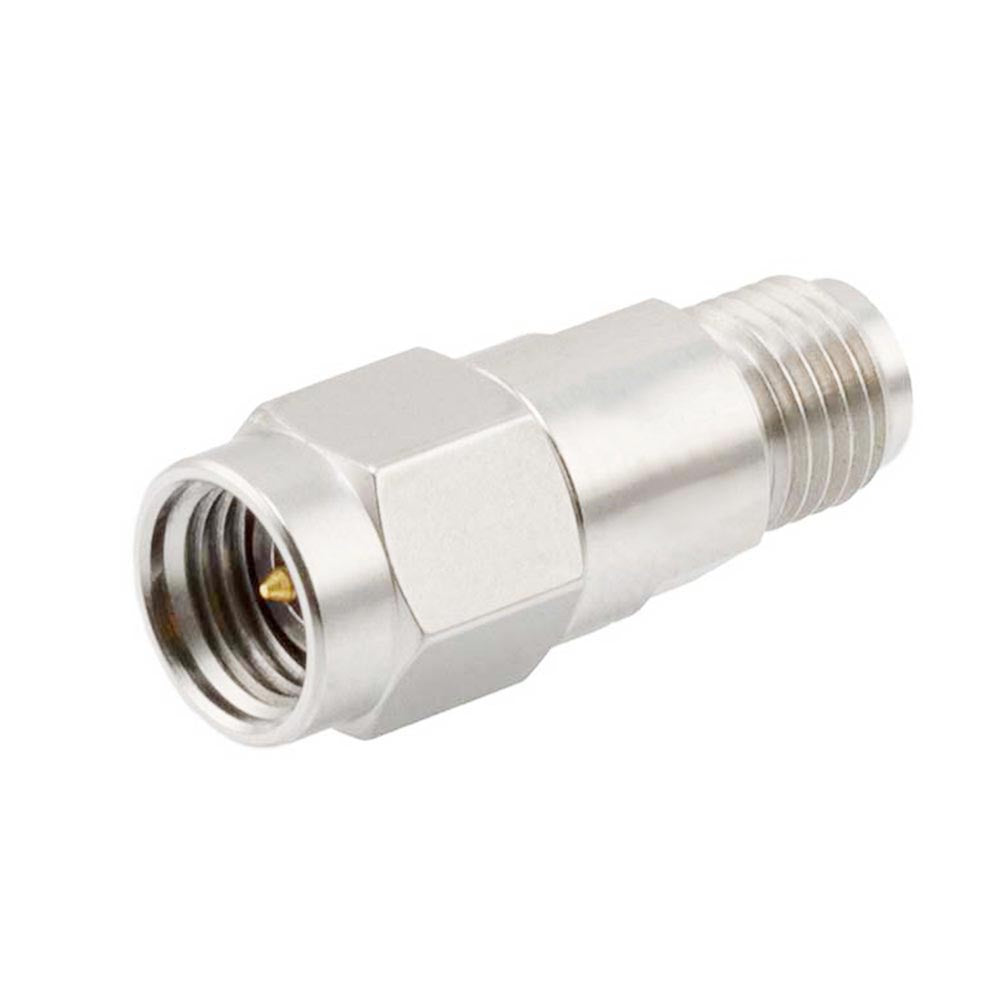

2.92mm Male To Female DC Block 40GHz | PRF292DCB01

With a rated range of DC to 40 GHz, it keeps one consistent interface across your lowest and highest operating bands. The result is simpler inventory planning and predictable performance wherever frequency planning changes between projects.

It isolates DC and unwanted low-frequency energy, protecting equipment without degrading the wanted RF signal. High low-frequency isolation combined with flat RF response makes it a clean conditioning element in the chain.

Precision machining holds VSWR to 1.7:1, protecting signal integrity and minimizing reflected power across the band. Tight matching also improves cascaded accuracy when several components are used together in the same RF chain.

Built to the 2.92mm standard, the mating faces and coupling threads are held to tight tolerances for dependable intermateability. Precise alignment prevents cross-threading and off-center contact, preserving both performance and connector life.

Precision fabrication and inspection deliver uniform dimensions and performance unit after unit. Critical interfaces are checked against the standard profile, so mating, grounding and impedance remain consistent throughout the build.

With 500 cycles minimum and a -40 to +125 C range, electrical behavior stays consistent through years of connect and disconnect. The wide thermal range also accommodates extremes found in outdoor and aerospace installations.
