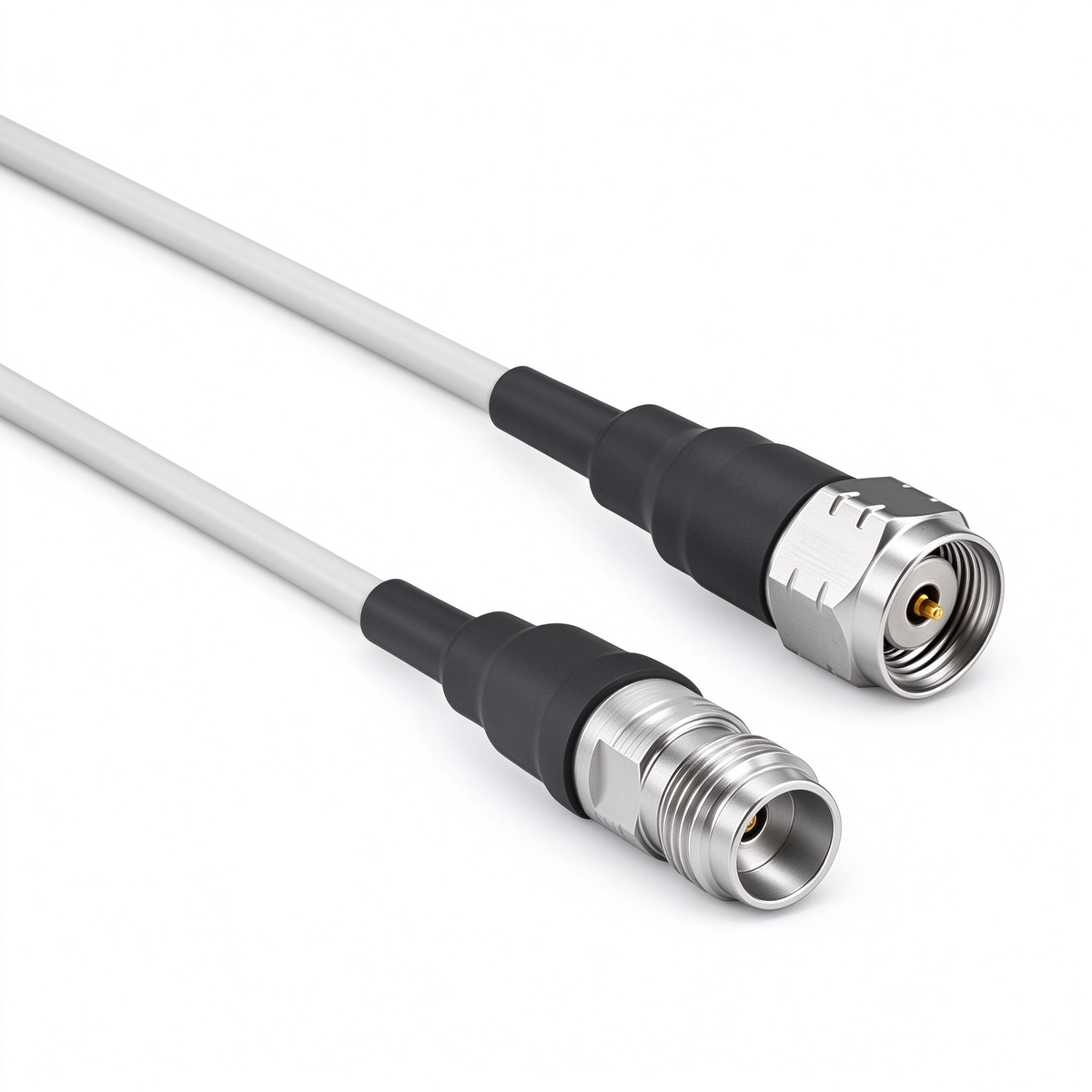

1.85mm Male to Female 67Ghz Flexible Low Loss Cable assembly PR936

SKU: PR936
(0)
$199.00
In stock
Usually ships within 24 hours
Length

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 210-607-8191

Key Advantages

This 1.85mm M/F Cable Flexible is flexible for easy routing, phase-stable under flexure and low in attenuation for dependable, repeatable transmission across DC - 67 GHz. Consistent termination and controlled construction keep measurements repeatable, whether used as a bench jumper or inside a fixed system.

▸ True mmWave Bandwidth to 67 GHz
Extending cleanly into millimeter-wave frequencies, the transition stays in a single controlled propagation mode, suppressing mode conversion and keeping insertion loss flat where ordinary parts roll off.
▸ Predictable 1.85 Maximum VSWR
The 1.85-class match (roughly 11 dB return loss) is a sensible, economical choice for connections that must be reliable without lab-grade pricing.
▸ Consistent 50 Ω Geometry
Holding a constant 50 Ω characteristic impedance avoids internal steps that reflect energy, so the part matches the rest of a standard 50 Ω system.
▸ Flexible, Routable Construction
Flexible construction routes cleanly around chassis features and cable trays while maintaining a stable 50 Ω path to both connectors.
▸ Phase Stable Under Flex · Low-Loss Dielectric
Mechanically phase-stable design holds electrical length nearly constant during bending and movement, keeping VNA and phased-array measurements repeatable; a low-loss dielectric reduces attenuation along the run, preserving signal-to-noise ratio over longer cable paths.
▸ 500+ Mating Cycles, -55°C to +125°C
With 500+ durable cycles and operation from -55°C to +125°C, it is built for long service in aerospace, field and laboratory conditions.

Applications

This component is widely deployed across RF, microwave and millimeter-wave systems that demand reliable, high-frequency interconnection:

5G / 6G & Wireless Infrastructure Test & Measurement (VNA / Analyzers) Aerospace & Defense SATCOM, Radar & EW Microwave / mmWave Systems R&D Labs & Universities Medical RF Equipment Industrial IoT & Broadcast
