2.92mm cable assembly

SKU: PRF-292CABLE
(0)
$100.00
-33% $150.00 $100.00
Only 5 left
Low inventory - Hurry up!

Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

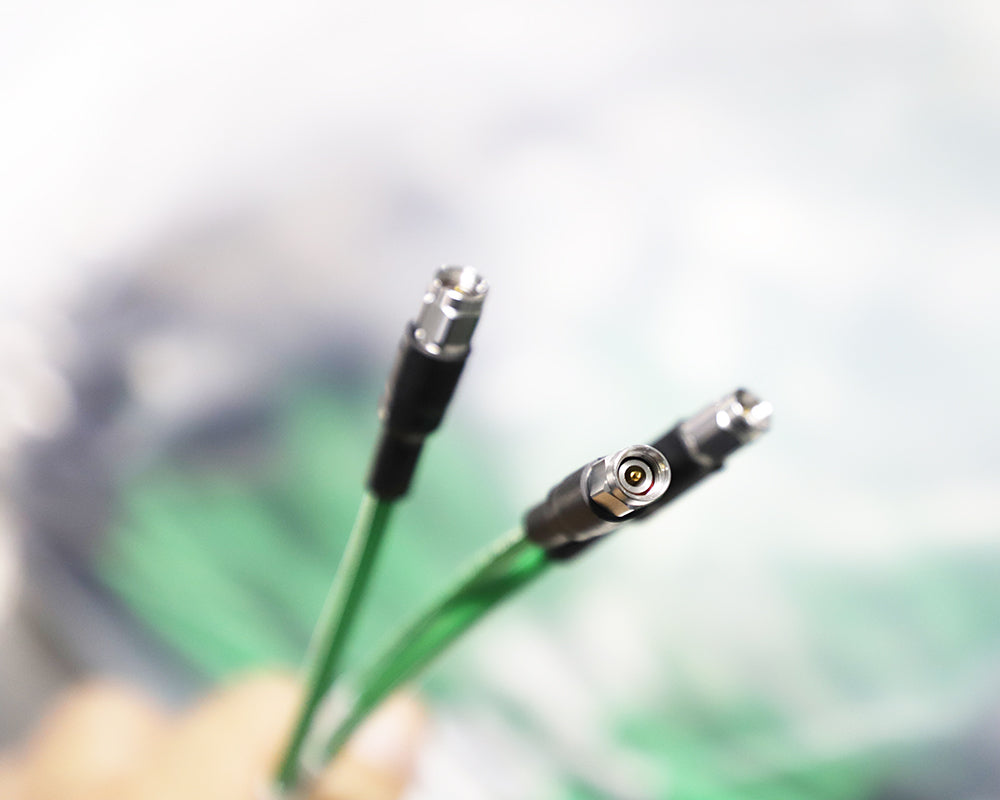

2.92mm to 2.92mm 40 GHz Test cable assemblies allow connectivity in test and measurement / engineering labs and manufacturing environments. They are available in both imperial and metric lengths. We offer customization upon request. PR360 is a high performance, low-loss flexible cable - offering superior performance with a 2.92mm 40 GHz precision straight connector.

Specifications

  • VSWR Maximum of 1.25
  • Impedance: 50 ohms (+/-2)
  • Maximum Operating Frequency: 40 GHz
  • Velocity of Propagation: 76%
  • Operating Temperature: -40ºC to 80ºC

Features

  • PR360 cable type
  • Imperial lengths of 6”, 12”, 24”, 36”, 60”
  • Metric lengths of 75mm, 100mm, 250mm, 500mm, and 1000mm
