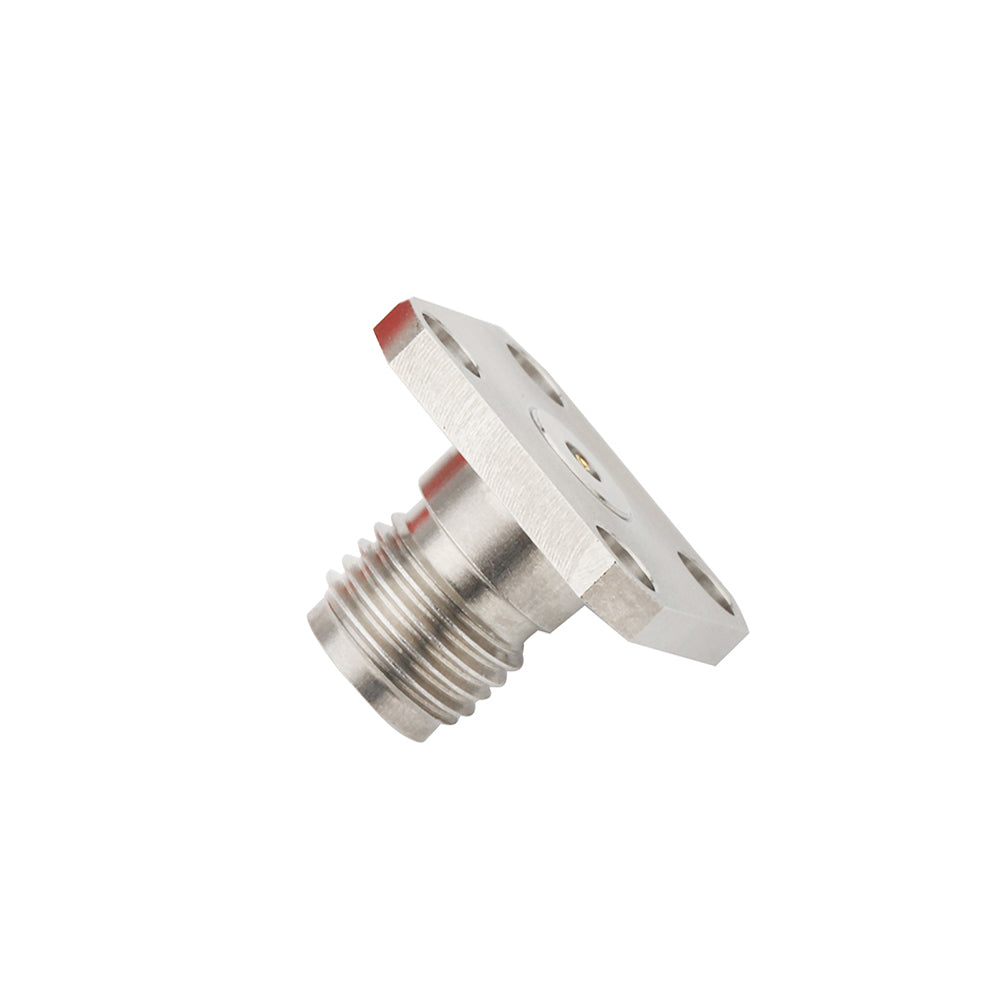

2.92mm Female 4 Hole 0.500" Square Flange Connector Accept .009'' Pin Dia PR360S09F01

• Part Number: PR360S09F01

• Technical Performance                        Material/Plating

• Impedance：50Ω                                 Body： SS Passivated SUS303

• Frequency：DC~40GHz                      Contact: Becu Gold Plating

• VSWR：                                                      Insulator: PTFE&PEI

• DC~18GHzꞏꞏꞏꞏ 1.10:1（MAX）

• 18GHz~40GHz···· 1.15:1（MAX）

• Contact Resistance：

• Center Contact≤3.0mΩ

• Outer Contact ≤2.0mΩ

• Insulation Resistance：≥3000MΩ

• Withstand Voltage：750V

• Cycles：500 times

• Temperature Range：-55~+165℃

Parts In stock will ship from our Warehouse in Houston, TX or Factory.

If Parts Sold Out ,Need Details drawing or for more information, Please send email to our sales team: sales@precisionrf.com.
