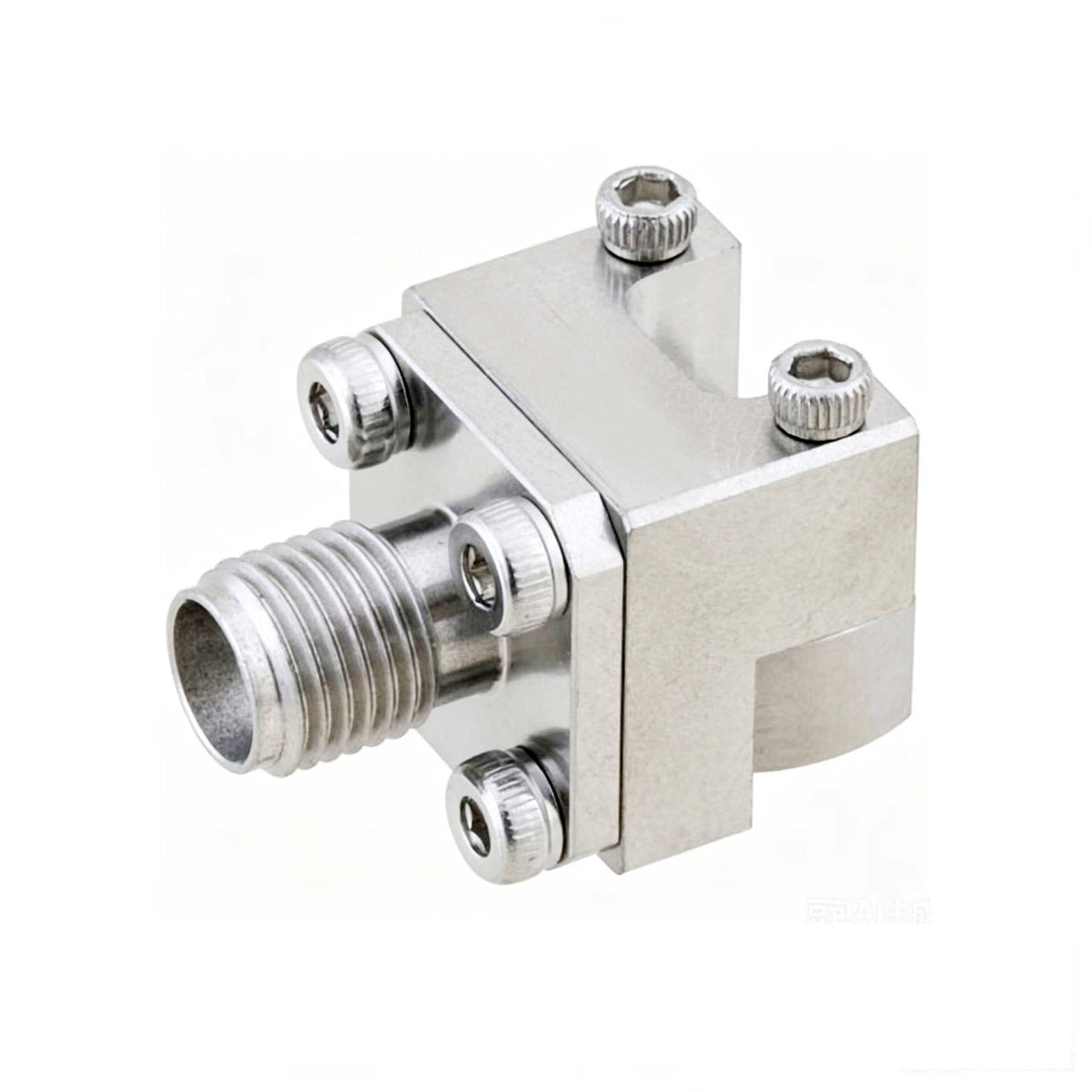

2.92mm Female End Launch Connector | PR29XXXXA06

Engineered for continuous operation from DC to 40 GHz, this unit supports broadband RF and microwave signal paths without band switching. That single-part coverage reduces the variants you must specify, stock and qualify across multi-band systems.

A maximum VSWR of 1.3:1 maintains a clean 50 Ohm match, reducing reflections that distort signals or create standing waves. Lower reflected power protects sensitive sources and keeps measured amplitude and phase close to the design model.

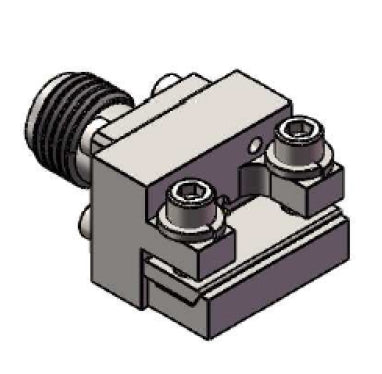

The edge launch / PCB design anchors firmly to the panel or board, keeping the interface fixed under mating torque and vibration. A stable mount protects solder joints and grounding, which is essential in dense, high-frequency assemblies.

The 2.92mm interface follows the standard RF profile with threaded coupling and accurate alignment for repeatable connections. Mating faces, threads and critical diameters are held to controlled tolerances for consistent intermateability.

Constructed with stainless steel (SUS303), gold-plated beryllium copper contacts, the body resists corrosion while contacts stay highly conductive over thousands of mates. These materials are chosen for mechanical stability, so critical dimensions and electrical behavior hold over time.

Rated for 300 mating cycles and operation from -55 to +165 C, it withstands repeated use and wide temperature swings. Performance stays stable as the unit ages, suiting both production benches and field-deployed equipment.
