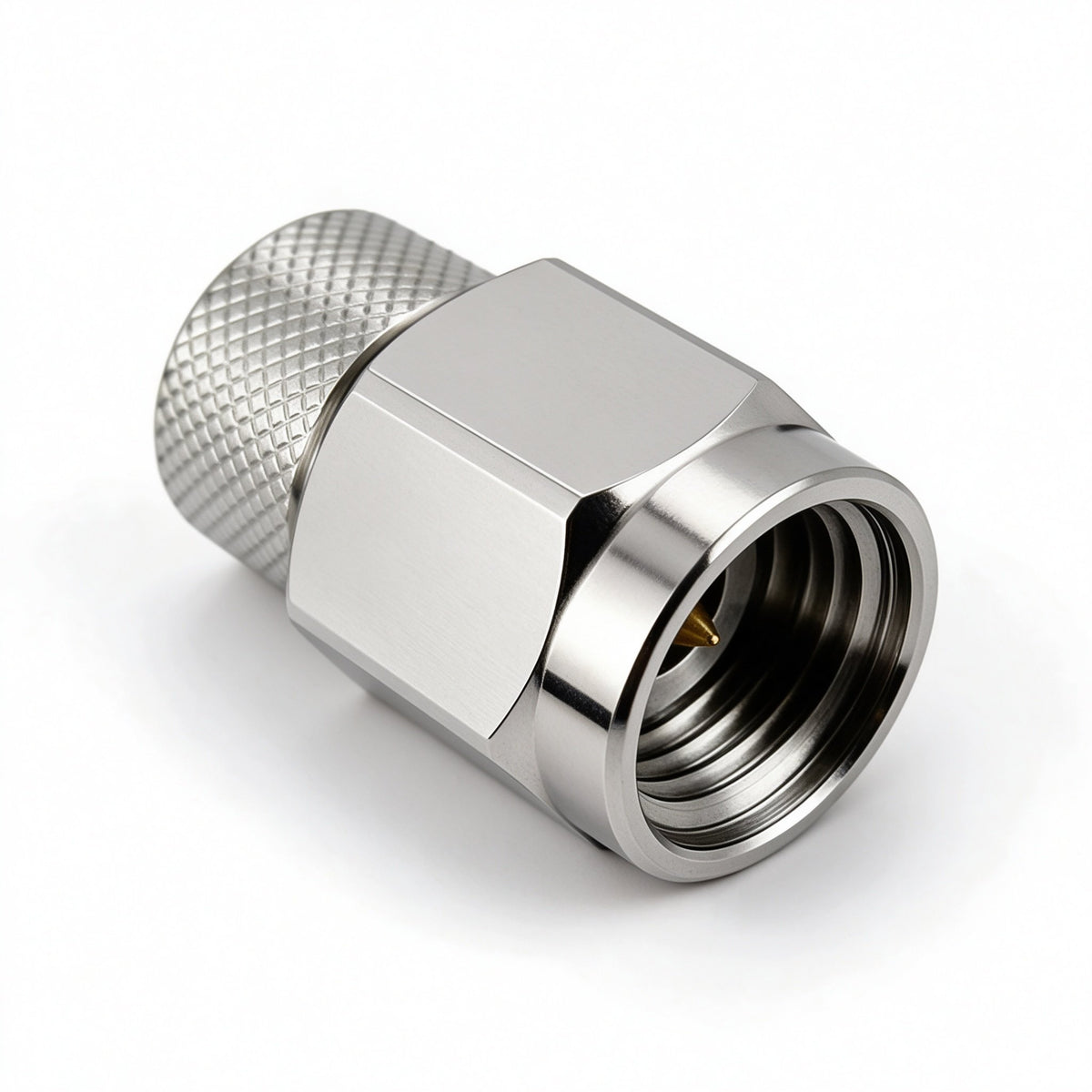

2.92mm Male Coaxial Termination 2W PRF-TER-005
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Ask an expert!
Key Advantages
The PRF-TER-005 is a premium-grade 2.92mm male coaxial termination rated from DC to 40 GHz at 2 W with a tight 1.15:1 maximum VSWR. It is designed for precision measurement and calibration applications.
The 1.15:1 maximum VSWR places this part in the highest match tier of the series, minimizing the reflection that a standard-grade load would introduce into a precision setup.
The tighter match lowers mismatch uncertainty in VNA, source and receiver measurements, improving confidence in calibration and characterization results.
The male interface delivers a stable 50 ohm, 2 W termination for high-accuracy female-facing ports across the full DC to 40 GHz range.
The precision element and interface maintain their match through repeated connections, giving consistent results over the life of the part rather than drifting after a few cycles.
Low-loss gold plating on the contact keeps contact resistance and intermodulation effects minimal, which is critical when the load itself is part of a measurement reference.
Stainless steel body and controlled impedance steps are built to metrology standards, providing the mechanical and electrical stability expected on calibration benches.
