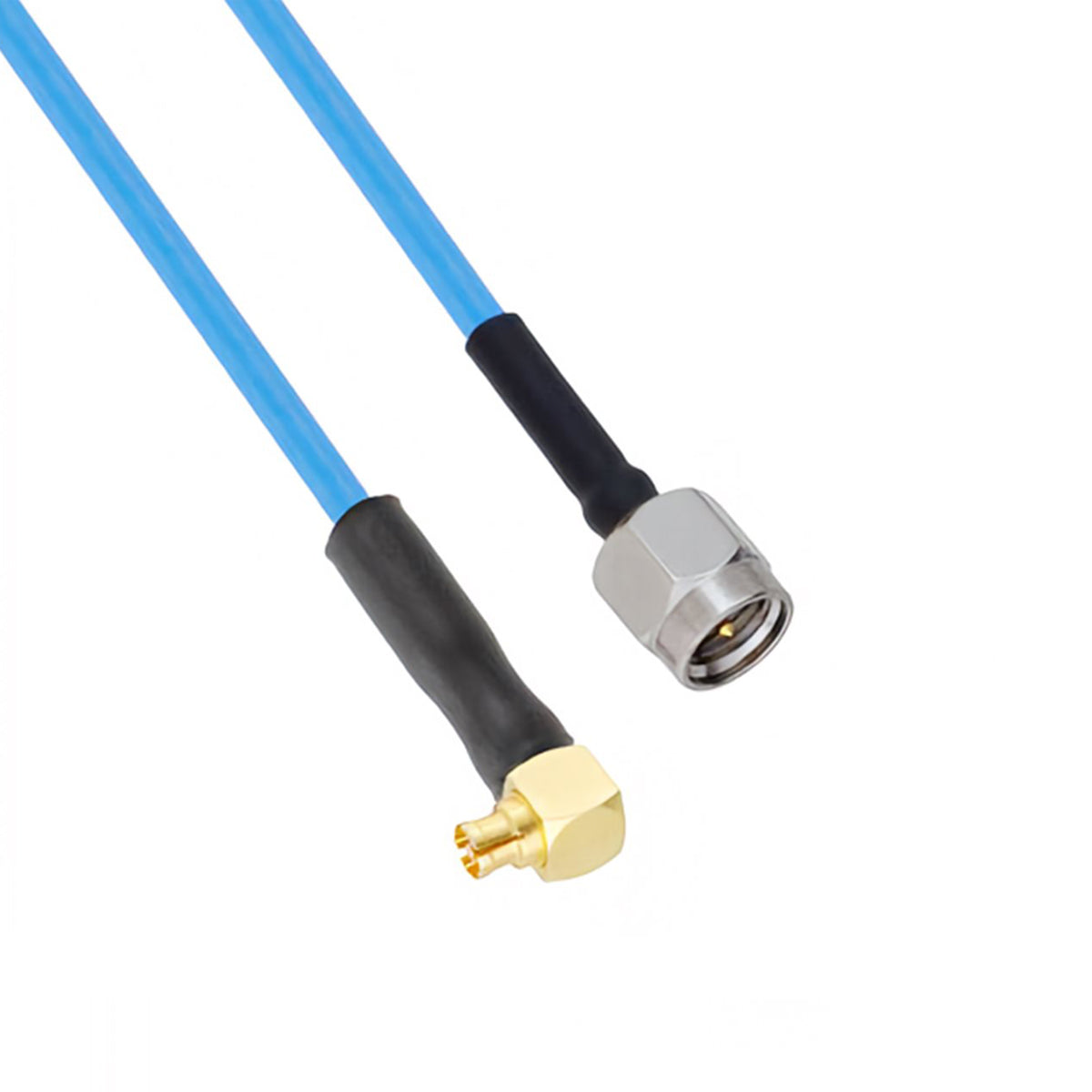

Cable SMP female Right Angle to SMA male 086 Flexible 10" PR1275

SKU: PR1275
(0)
$25.90
In stock
Usually ships within 24 hours

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 210-607-8191

Key Advantages

This Cable SMP /FRA to SMA/M Flexible cable assembly is flexible for easy routing, and provides a controlled, repeatable 50 Ω path across DC - 18 GHz. Consistent termination and controlled construction keep measurements repeatable, whether used as a bench jumper or inside a fixed system.

▸ Reliable DC–18 GHz Operation
The broadband design serves multiple radios and instruments in one reliable part, with stable behavior through the lower microwave bands.
▸ Consistent 1.35 Match
The 1.35-class match (roughly 17 dB return loss) is a sensible, economical choice for connections that must be reliable without lab-grade pricing.
▸ Consistent 50 Ω Geometry
A continuous 50 Ohm profile through the transition minimizes impedance mismatch and insertion loss, preserving amplitude and phase integrity of the signal.
▸ Flexible, Routable Construction
Flexible construction routes cleanly around chassis features and cable trays while maintaining a stable 50 Ω path to both connectors.
▸ Stable, Repeatable Transmission
Controlled dielectric and precision terminations keep loss and match consistent along the assembly, so the same cable gives the same result test after test.
▸ 500+ Mating Cycles, -55°C to +125°C
A minimum 500-cycle mating life and a wide -55°C to +125°C temperature range keep the RF path stable through repeated use and thermal cycling.

Applications

This component is widely deployed across RF, microwave and millimeter-wave systems that demand reliable, high-frequency interconnection:

5G / 6G & Wireless Infrastructure Test & Measurement (VNA / Analyzers) Aerospace & Defense SATCOM, Radar & EW Microwave / mmWave Systems R&D Labs & Universities Medical RF Equipment Industrial IoT & Broadcast
