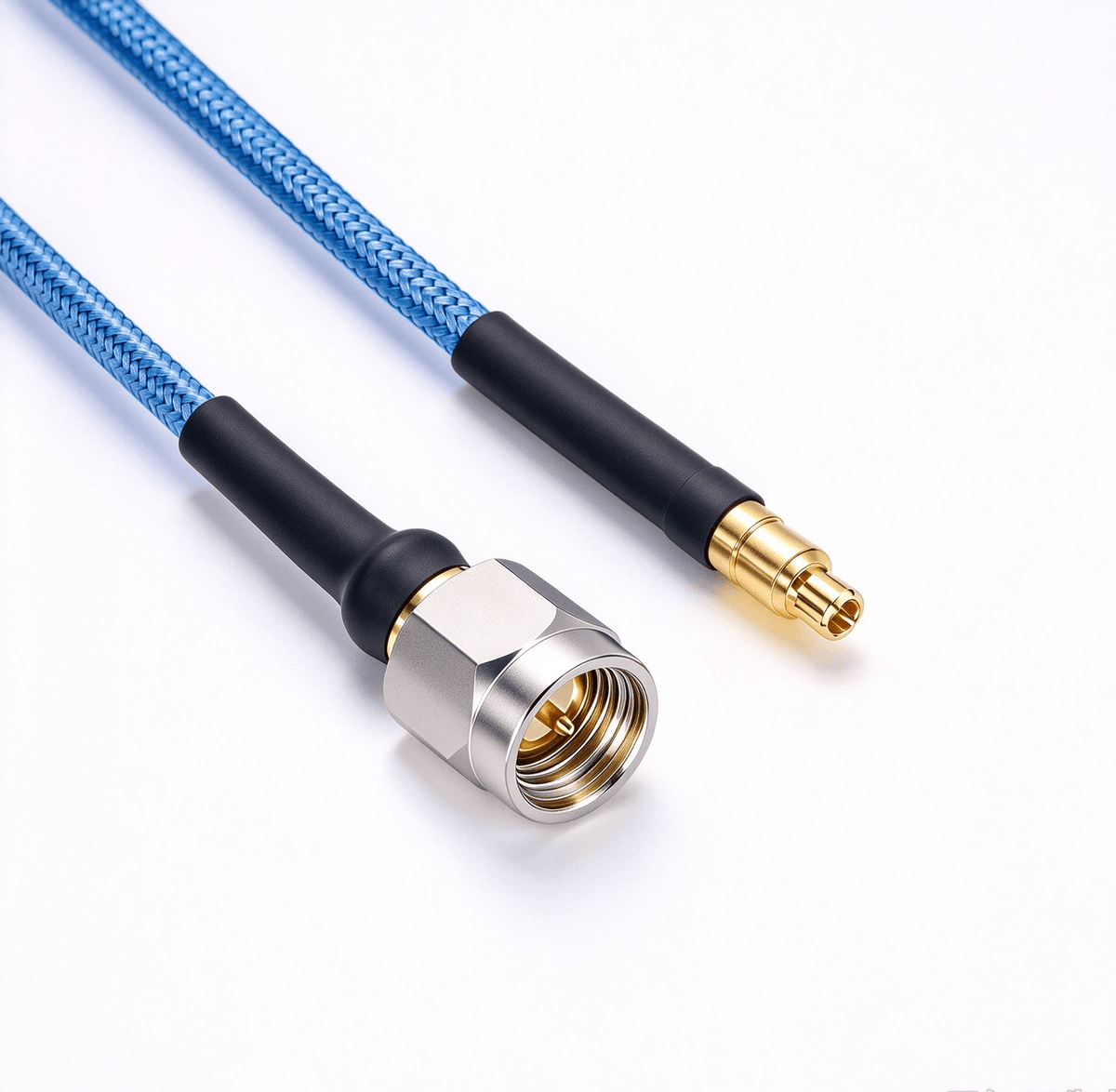

Cable SMP female to SMA male 086 Flexible cable 24" PR1255

SKU: PR1255
(0)
$20.50
In stock
Usually ships within 24 hours

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 210-607-8191

Key Advantages

This Cable SMP /F to SMA /M Flexible cable assembly is flexible for easy routing, and provides a controlled, repeatable 50 Ω path across DC - 18 GHz. Consistent termination and controlled construction keep measurements repeatable, whether used as a bench jumper or inside a fixed system.

▸ DC - 18 GHz Wideband General-Purpose Part
A practical DC-coupled range covers the bulk of general microwave, telecom and bench work, delivering dependable matching where extreme mmWave precision is not required.
▸ 1.25 VSWR for High Performance
A 1.25 maximum VSWR (roughly 19 dB return loss) keeps reflection low across the band for a stable match in demanding system and instrument connections.
▸ Consistent 50 Ω Geometry
A continuous 50 Ohm profile through the transition minimizes impedance mismatch and insertion loss, preserving amplitude and phase integrity of the signal.
▸ Flexible Build for Tight Routing
The cable balances flexibility with mechanical strength, so it follows the required route without sharp bends or strain at the terminations.
▸ Stable, Repeatable Transmission
Controlled dielectric and precision terminations keep loss and match consistent along the assembly, so the same cable gives the same result test after test.
▸ 500-Cycle Durability, -55°C to +125°C
Rated for at least 500 mate/unmate cycles and an operating span of -55°C to +125°C, it withstands daily bench handling and demanding industrial or outdoor environments.

Applications

This component is widely deployed across RF, microwave and millimeter-wave systems that demand reliable, high-frequency interconnection:

5G / 6G & Wireless Infrastructure Test & Measurement (VNA / Analyzers) Aerospace & Defense SATCOM, Radar & EW Microwave / mmWave Systems R&D Labs & Universities Medical RF Equipment Industrial IoT & Broadcast
