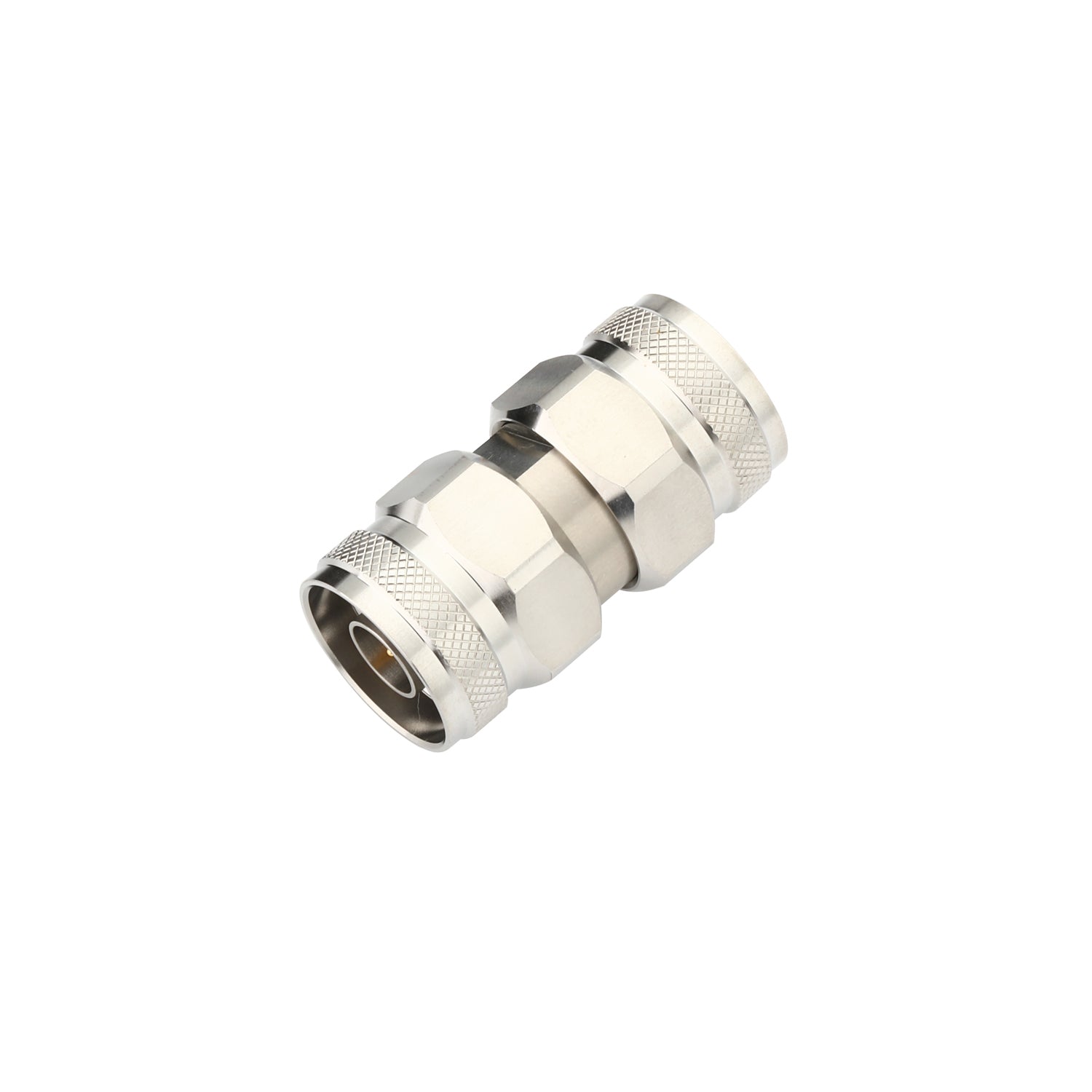

N type male to male adapter | PRF-ADANMM

With a rated range of DC to 18 GHz, it keeps one consistent interface across your lowest and highest operating bands. The result is simpler inventory planning and predictable performance wherever frequency planning changes between projects.

Precision machining holds VSWR to 1.15:1, protecting signal integrity and minimizing reflected power across the band. Tight matching also improves cascaded accuracy when several components are used together in the same RF chain.

Built to the N type standard, the mating faces and coupling threads are held to tight tolerances for dependable intermateability. Precise alignment prevents cross-threading and off-center contact, preserving both performance and connector life.

Smooth internal geometry provides a near-transparent path with minimal loss and phase disturbance. This suits precision measurements where the fixture should contribute as little error as possible to the result.

Materials are selected for long-term stability: stainless steel Type 303, passivated, gold-plated beryllium copper contacts, giving consistent electrical and mechanical performance. Gold plating lowers contact resistance and resists wear, while the body material provides strength and grounding.

With 500 cycles minimum and a -40 to +125 C range, electrical behavior stays consistent through years of connect and disconnect. The wide thermal range also accommodates extremes found in outdoor and aerospace installations.
