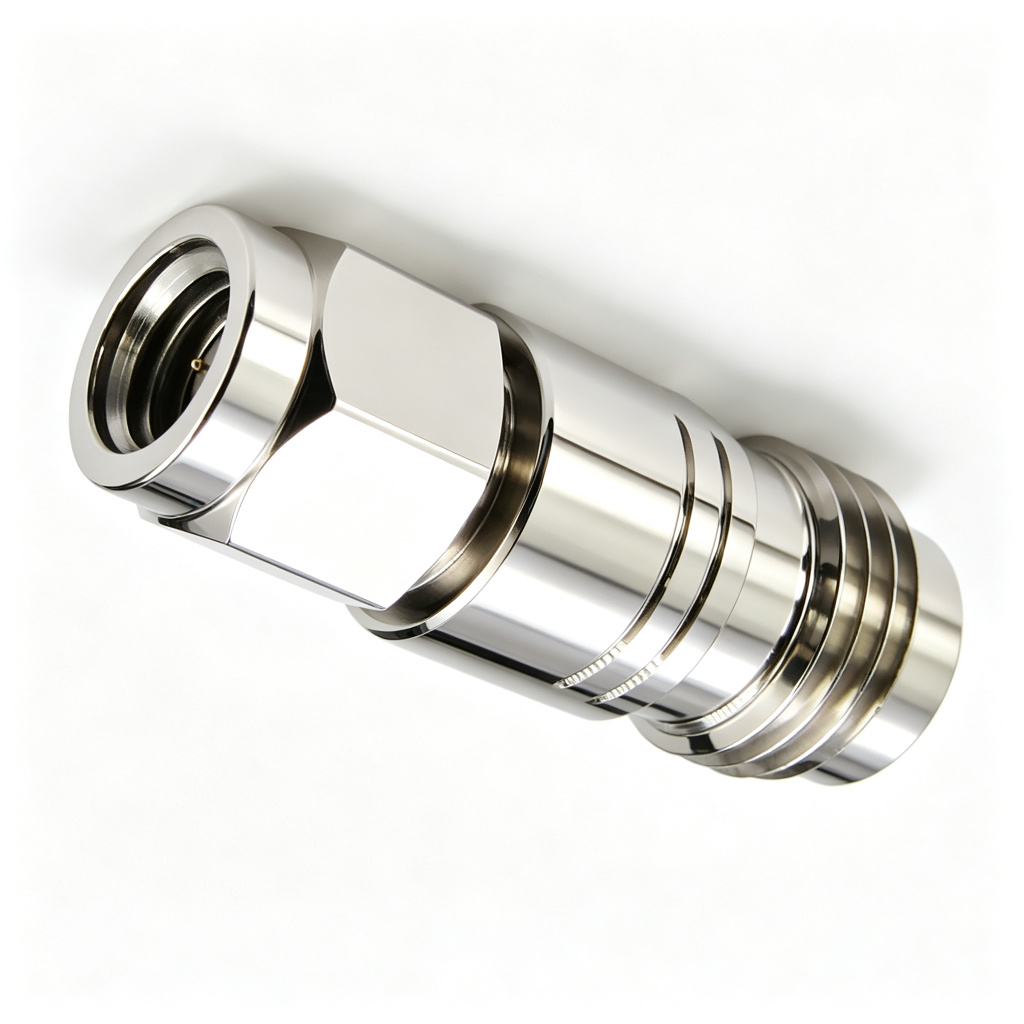

1.0mm Male to 1.85mm Female Adapter VSWR 1.25 67Ghz
1.0mm Male to 1.85mm Female Adapter VSWR 1.25 67Ghz

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

PrecisionRF

1.0mm Male to 1.85mm Female Adapter VSWR 1.85 67Ghz PR011

SKU: PR011
(0)
$190.00
In stock
Usually ships within 24 hours

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 210-607-8191

Key Advantages

A precision-built 1.0mm Male to 1.85mm Female adapter engineered for controlled, repeatable interconnection from DC - 67 GHz. The result is a dependable link for test instrumentation, microwave systems and production fixtures, with consistent results mating after mating.

▸ True mmWave Bandwidth to 67 GHz
At these frequencies every tenth of a millimetre matters; tight machining keeps the RF path continuous through the band with minimal dispersion and repeatable results.
▸ Reliable 1.85-Class Matching
A defined 1.85 maximum VSWR (roughly 11 dB return loss) gives a predictable, repeatable match suited to general RF links where value matters as much as absolute precision.
▸ True 50 Ω Continuity
The 50 Ω geometry is maintained at every internal diameter change, keeping the line smooth and the reference plane well defined.
▸ Stainless-Steel Body · BeCu Contact
The passivated stainless-steel body resists corrosion and mechanical wear and holds tight dimensional stability at high frequency; spring-tempered beryllium-copper contacts deliver low, stable contact resistance and resist fatigue over many cycles; gold-plated contact surfaces stay free of oxidation so connection resistance remains low after repeated mating.
▸ Precision Between-Series Path
A short inline body keeps the internal signal path minimal, reducing the length over which mismatch and loss can accumulate.
▸ Built to Last: 500+ Cycles
With 500+ durable cycles and operation from -55°C to +125°C, it is built for long service in aerospace, field and laboratory conditions.

Applications

This component is widely deployed across RF, microwave and millimeter-wave systems that demand reliable, high-frequency interconnection:

5G / 6G & Wireless Infrastructure Test & Measurement (VNA / Analyzers) Aerospace & Defense SATCOM, Radar & EW Microwave / mmWave Systems R&D Labs & Universities Medical RF Equipment Industrial IoT & Broadcast
