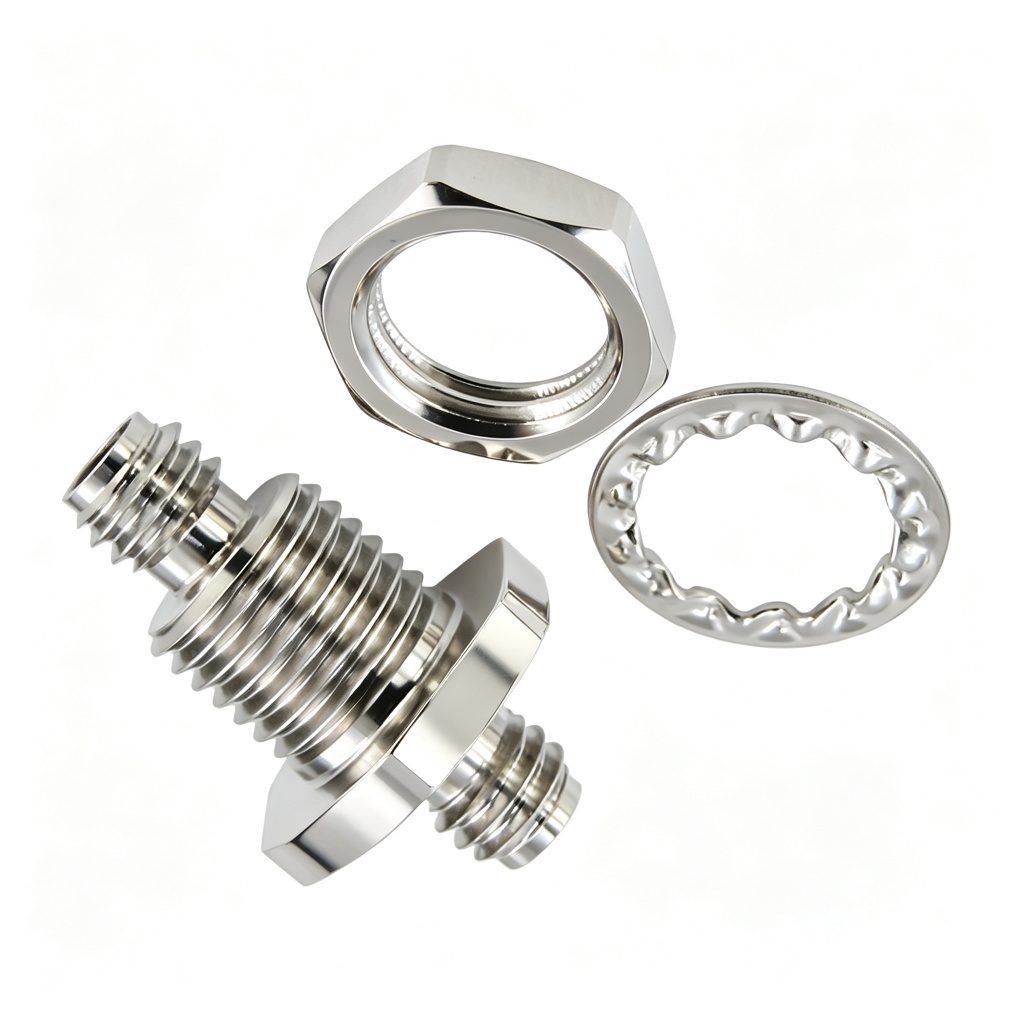

Home » 1.0mm Bulkhead Adapter Female to Female VSWR 1.35 110Ghz PR012
1.0mm Bulkhead Adapter Female to Female VSWR 1.25 110Ghz
1.0mm Bulkhead Adapter Female to Female VSWR 1.25 110Ghz

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

PrecisionRF

1.0mm Bulkhead Adapter Female to Female VSWR 1.35 110Ghz PR012

SKU: PR012
(0)
$490.00
In stock
Usually ships within 24 hours

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 210-607-8191

Key Advantages

This precision 1.0mm Bulkhead Female to Female coaxial adapter provides a repeatable, well-matched transition across DC - 110 GHz. It is machined to a strict 50 Ω profile for high-frequency test benches, R&D labs and system integration where every fraction of a dB and every repeatable connection count.

▸ DC - 110 GHz, Millimeter-Wave Ready
At these frequencies every tenth of a millimetre matters; tight machining keeps the RF path continuous through the band with minimal dispersion and repeatable results.
▸ 1.35 VSWR for High Performance
Low 1.35 maximum VSWR (roughly 17 dB return loss) balances precision and value, with margin for production test and high-performance equipment.
▸ Precision 50 Ω Impedance
A continuous 50 Ohm profile through the transition minimizes impedance mismatch and insertion loss, preserving amplitude and phase integrity of the signal.
▸ Stainless-Steel Body · BeCu Contact
The passivated stainless-steel body resists corrosion and mechanical wear and holds tight dimensional stability at high frequency; spring-tempered beryllium-copper contacts deliver low, stable contact resistance and resist fatigue over many cycles; gold-plated contact surfaces stay free of oxidation so connection resistance remains low after repeated mating.
▸ Bulkhead Feed-Through Design
It is built to mount through panels, keeping the inside and outside of an enclosure firmly and repeatably interconnected.
▸ Built to Last: 500+ Cycles
A minimum 500-cycle mating life and a wide -55°C to +125°C temperature range keep the RF path stable through repeated use and thermal cycling.

Applications

This component is widely deployed across RF, microwave and millimeter-wave systems that demand reliable, high-frequency interconnection:

5G / 6G & Wireless Infrastructure Test & Measurement (VNA / Analyzers) Aerospace & Defense SATCOM, Radar & EW Microwave / mmWave Systems R&D Labs & Universities Medical RF Equipment Industrial IoT & Broadcast
