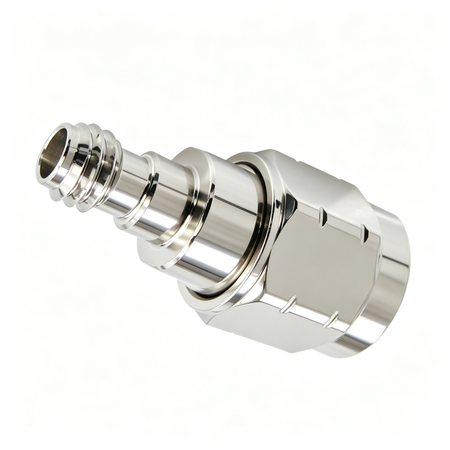

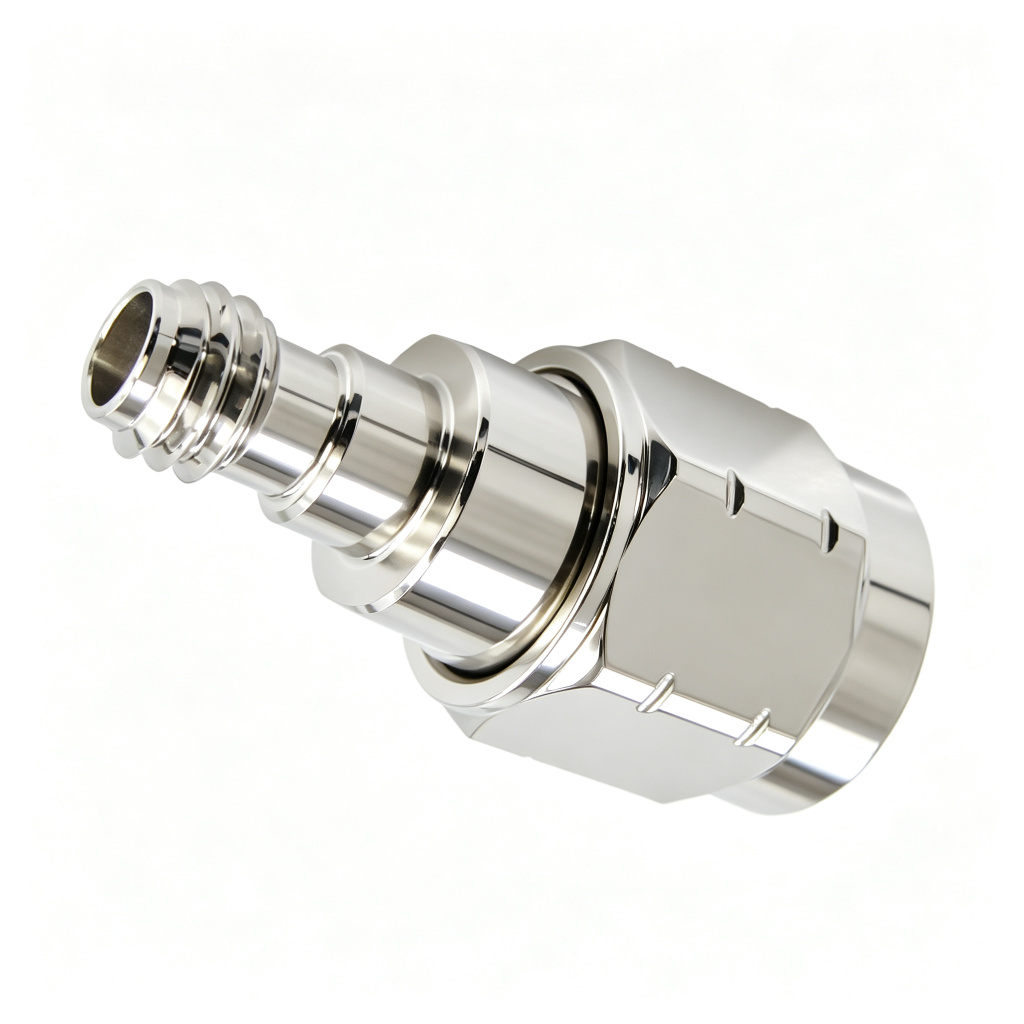

1.0mm Female to 1.85mm Male Adapter VSWR 1.85 67Ghz PR015

SKU: PR015
(0)
$190.00
In stock
Usually ships within 24 hours

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 210-607-8191

Key Advantages

A precision-built 1.0mm Female to 1.85mm Male adapter engineered for controlled, repeatable interconnection from DC - 67 GHz. It is machined to a strict 50 Ω profile for high-frequency test benches, R&D labs and system integration where every fraction of a dB and every repeatable connection count.

▸ True mmWave Bandwidth to 67 GHz
Precision coaxial geometry maintains mode-free operation well into the mmWave region, supporting VNA, E-band and high-data-rate links with a short, well-matched transition.
▸ Consistent 1.85 Match
A defined 1.85 maximum VSWR (roughly 11 dB return loss) gives a predictable, repeatable match suited to general RF links where value matters as much as absolute precision.
▸ Consistent 50 Ω Geometry
The 50 Ω geometry is maintained at every internal diameter change, keeping the line smooth and the reference plane well defined.
▸ Stainless-Steel Body, BeCu Contact
The passivated stainless-steel body resists corrosion and mechanical wear and holds tight dimensional stability at high frequency; spring-tempered beryllium-copper contacts deliver low, stable contact resistance and resist fatigue over many cycles; gold-plated contact surfaces stay free of oxidation so connection resistance remains low after repeated mating.
▸ Compact Inline Transition
The compact coaxial transition aligns both interfaces on one axis for a centered contact and clean, repeatable mate.
▸ 500+ Mating Cycles, -55°C to +125°C
Rated for at least 500 mate/unmate cycles and an operating span of -55°C to +125°C, it withstands daily bench handling and demanding industrial or outdoor environments.

Applications

This component is widely deployed across RF, microwave and millimeter-wave systems that demand reliable, high-frequency interconnection:

5G / 6G & Wireless Infrastructure Test & Measurement (VNA / Analyzers) Aerospace & Defense SATCOM, Radar & EW Microwave / mmWave Systems R&D Labs & Universities Medical RF Equipment Industrial IoT & Broadcast
