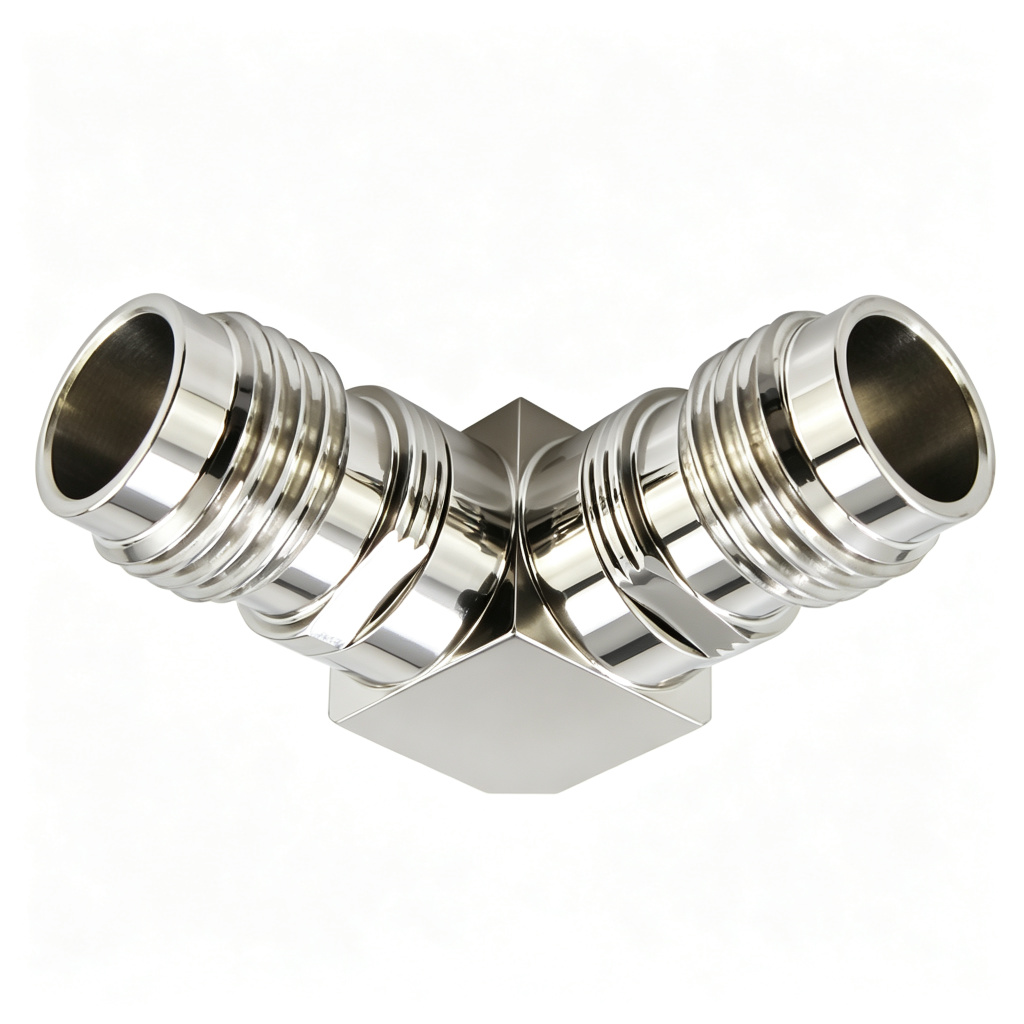

1.85mm Right Angle Adapter Female to Female VSWR 1.35 67Ghz
1.85mm Right Angle Adapter Female to Female VSWR 1.35 67Ghz

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

PrecisionRF

1.85mm Right Angle Adapter Female to Female VSWR 1.85 67Ghz PR034

SKU: PR034
(0)
$139.00
In stock
Usually ships within 24 hours

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 210-607-8191

Key Advantages

This precision 1.85mm Right Angle Female to Female coaxial adapter provides a repeatable, well-matched transition across DC - 67 GHz. It is machined to a strict 50 Ω profile for high-frequency test benches, R&D labs and system integration where every fraction of a dB and every repeatable connection count.

▸ Wide DC - 67 GHz mmWave Coverage
Extending cleanly into millimeter-wave frequencies, the transition stays in a single controlled propagation mode, suppressing mode conversion and keeping insertion loss flat where ordinary parts roll off.
▸ Reliable 1.85-Class Matching
A defined 1.85 maximum VSWR (roughly 11 dB return loss) gives a predictable, repeatable match suited to general RF links where value matters as much as absolute precision.
▸ True 50 Ω Continuity
The 50 Ω geometry is maintained at every internal diameter change, keeping the line smooth and the reference plane well defined.
▸ Stainless-Steel Body · BeCu Contact
The passivated stainless-steel body resists corrosion and mechanical wear and holds tight dimensional stability at high frequency; spring-tempered beryllium-copper contacts deliver low, stable contact resistance and resist fatigue over many cycles; gold-plated contact surfaces stay free of oxidation so connection resistance remains low after repeated mating.
▸ Compact Right-Angle Exit
The angled form reduces bend radius and mechanical stress in space-constrained racks and handheld equipment.
▸ 500-Cycle Durability, -55°C to +125°C
With 500+ durable cycles and operation from -55°C to +125°C, it is built for long service in aerospace, field and laboratory conditions.

Applications

This component is widely deployed across RF, microwave and millimeter-wave systems that demand reliable, high-frequency interconnection:

5G / 6G & Wireless Infrastructure Test & Measurement (VNA / Analyzers) Aerospace & Defense SATCOM, Radar & EW Microwave / mmWave Systems R&D Labs & Universities Medical RF Equipment Industrial IoT & Broadcast

Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.

There is €4.99 charge for delivery under €50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
