Home » 1.85mm Male to MiniSMP Male Full Detente Adapter PR076

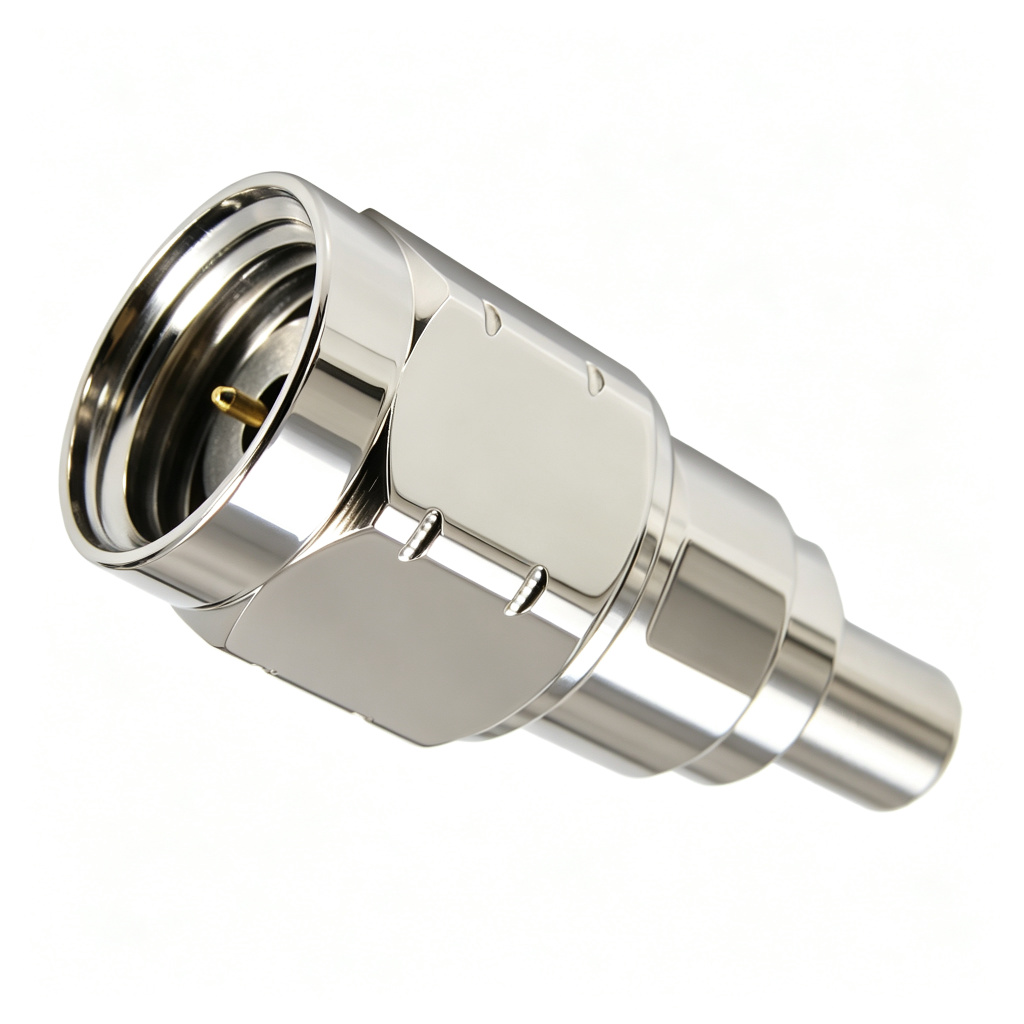

1.85mm Male to MiniSMP Male Full Detente Adapter 67ghz VSWR 1.35
1.85mm Male to MiniSMP Male Full Detente Adapter 67ghz VSWR 1.35

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

PrecisionRF

1.85mm Male to MiniSMP Male Full Detente Adapter PR076

SKU: PR076
(0)
$149.00
In stock
Usually ships within 24 hours

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 210-607-8191

Key Advantages

A precision-built 1.85mm Male to MiniSMP Male Full Detente adapter engineered for controlled, repeatable interconnection from DC - 67 GHz. The result is a dependable link for test instrumentation, microwave systems and production fixtures, with consistent results mating after mating.

▸ DC - 67 GHz, Millimeter-Wave Ready
At these frequencies every tenth of a millimetre matters; tight machining keeps the RF path continuous through the band with minimal dispersion and repeatable results.
▸ Predictable 1.85 Maximum VSWR
Held to 1.85 (roughly 11 dB return loss), reflections stay within a known envelope for dependable performance in commercial and industrial interconnections.
▸ Precision 50 Ω Impedance
A continuous 50 Ohm profile through the transition minimizes impedance mismatch and insertion loss, preserving amplitude and phase integrity of the signal.
▸ Stainless-Steel Body · BeCu Contact
The passivated stainless-steel body resists corrosion and mechanical wear and holds tight dimensional stability at high frequency; spring-tempered beryllium-copper contacts deliver low, stable contact resistance and resist fatigue over many cycles; gold-plated contact surfaces stay free of oxidation so connection resistance remains low after repeated mating.
▸ Short, Well-Centered Transition
A short inline body keeps the internal signal path minimal, reducing the length over which mismatch and loss can accumulate.
▸ 500-Cycle Durability, -55°C to +125°C
Rated for at least 500 mate/unmate cycles and an operating span of -55°C to +125°C, it withstands daily bench handling and demanding industrial or outdoor environments.

Applications

This component is widely deployed across RF, microwave and millimeter-wave systems that demand reliable, high-frequency interconnection:

5G / 6G & Wireless Infrastructure Test & Measurement (VNA / Analyzers) Aerospace & Defense SATCOM, Radar & EW Microwave / mmWave Systems R&D Labs & Universities Medical RF Equipment Industrial IoT & Broadcast
