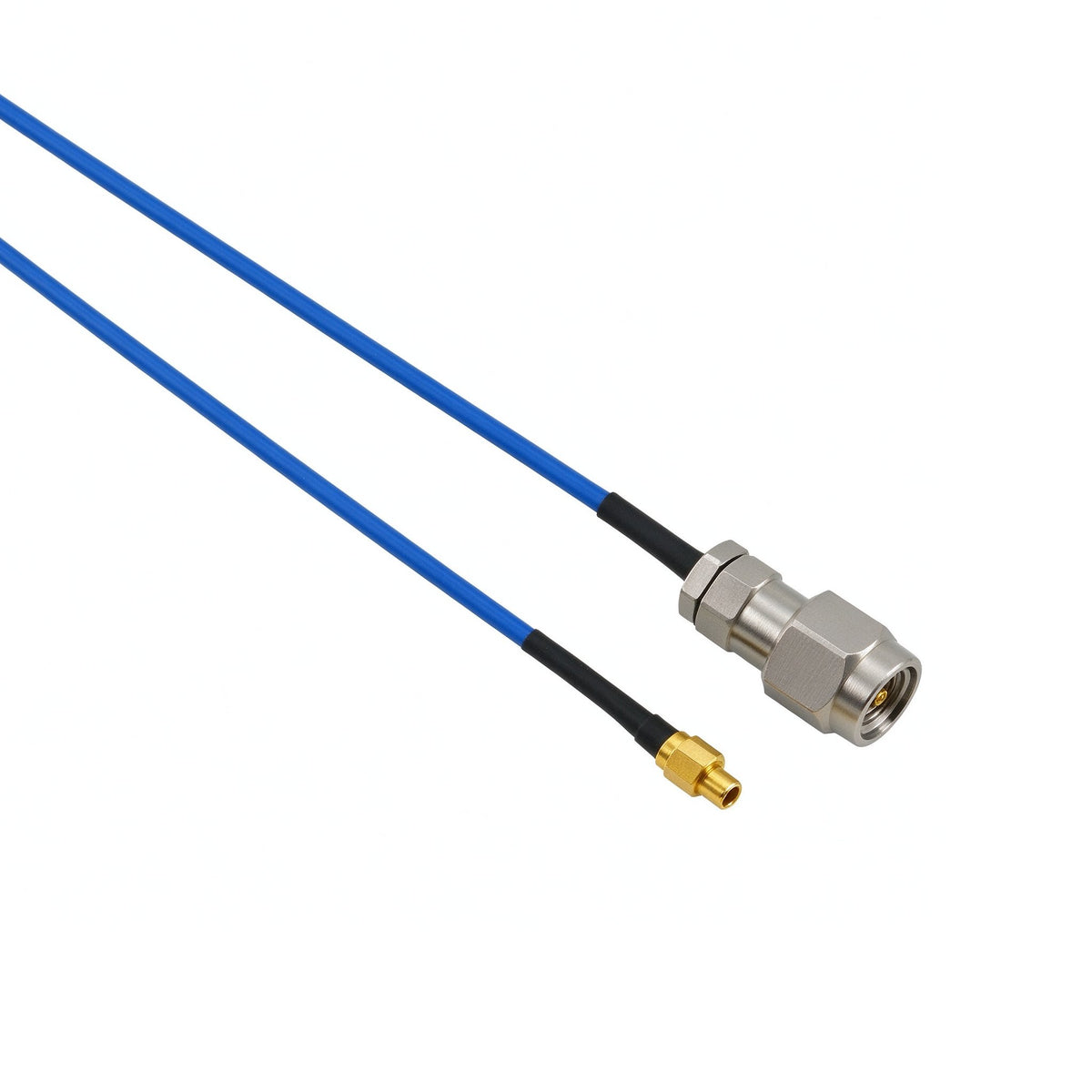

Mini SMP female to 2.92mm male with .047 Cable Assembly 40Ghz PR1168

SKU: PR1168
(0)
$49.00
In stock
Usually ships within 48 hours
Length

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 254-720-5573

Key Advantages

This Mini SMP/F to 2.92mm/M Cable Assembly cable assembly delivers a controlled, repeatable 50 Ω path across DC - 40 GHz. Consistent termination and controlled construction keep measurements repeatable, whether used as a bench jumper or inside a fixed system.

▸ DC - 40 GHz Wideband Performance
A wide continuous window covers K- and V-band-class systems and 5G FR2 work in a single part, simplifying bills of materials and removing extra transition stages.
▸ Ultra-Low 1.09 Maximum VSWR
A maximum VSWR of 1.09 (roughly 27 dB return loss) means very low reflected power, giving clean VNA traces and trustworthy, repeatable measurements.
▸ Precision 50 Ω Impedance
The 50 Ω geometry is maintained at every internal diameter change, keeping the line smooth and the reference plane well defined.
▸ Robust Cable Construction
Quality dielectric and jacket materials surround a controlled 50 Ω core, giving a stable, durable assembly with consistent termination at both ends.
▸ Stable, Repeatable Transmission
Controlled dielectric and precision terminations keep loss and match consistent along the assembly, so the same cable gives the same result test after test.
▸ 500+ Mating Cycles, -55°C to +125°C
A minimum 500-cycle mating life and a wide -55°C to +125°C temperature range keep the RF path stable through repeated use and thermal cycling.

Applications

This component is widely deployed across RF, microwave and millimeter-wave systems that demand reliable, high-frequency interconnection:

5G / 6G & Wireless Infrastructure Test & Measurement (VNA / Analyzers) Aerospace & Defense SATCOM, Radar & EW Microwave / mmWave Systems R&D Labs & Universities Medical RF Equipment Industrial IoT & Broadcast
