Home » 2.92mm Female to 2.4mm Male Adapter Right Angle PR136

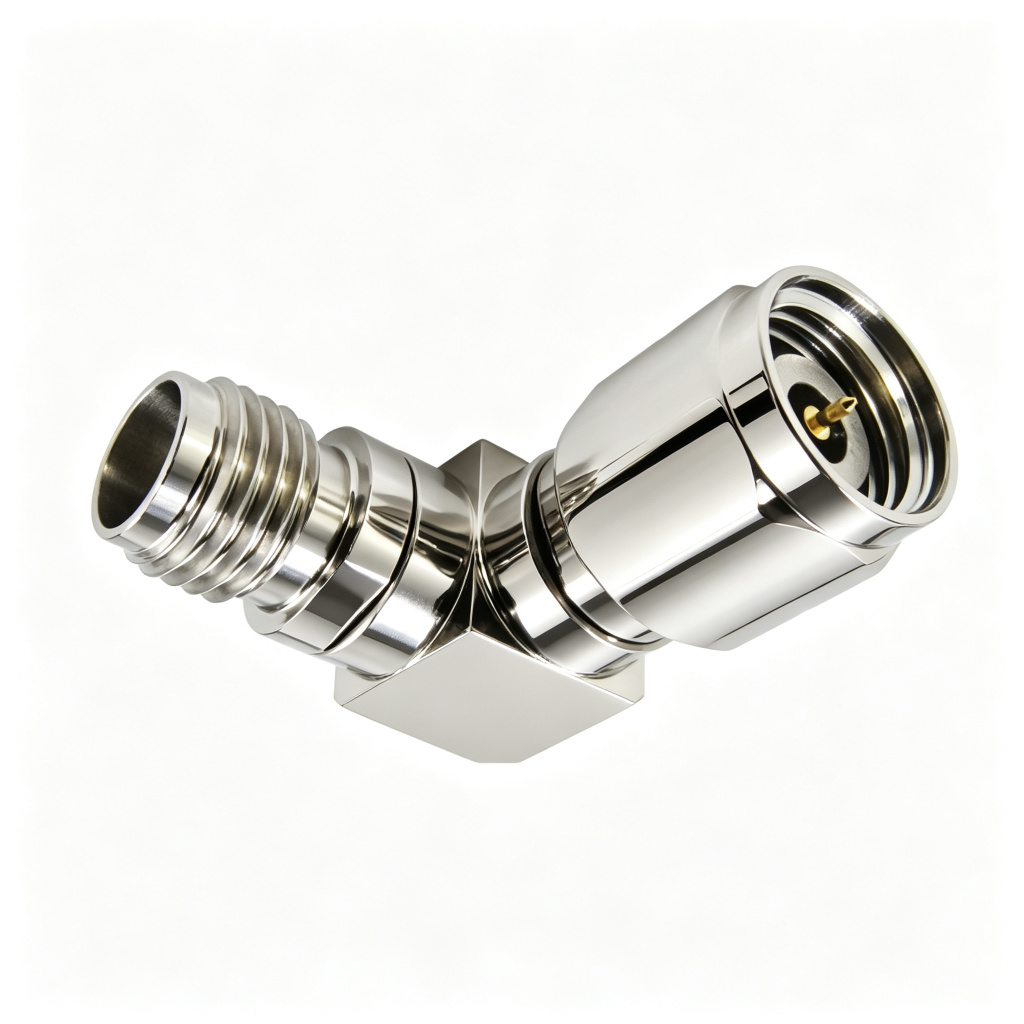

2.92mm Female to 2.4mm Male Adapter Right Angle VSWR 1.2 max 0-40Ghz
2.92mm Female to 2.4mm Male Adapter Right Angle VSWR 1.2 max 0-40Ghz

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

PrecisionRF

2.92mm Female to 2.4mm Male Adapter Right Angle PR136

SKU: PR136
(0)
$39.00
In stock
Usually ships within 48 hours

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 254-720-5573

Key Advantages

This precision 2.92mm Female to 2.4mm Male Right Angle coaxial adapter provides a repeatable, well-matched transition across DC - 40 GHz. Designed for engineers who need a dependable match, it suits instrument front-ends, RF systems and bench setups that cannot tolerate drift or sloppy mating.

▸ Broad DC - 40 GHz Microwave Window
Consistent performance from DC upward keeps amplitude and phase predictable across microwave and upper-microwave test setups.
▸ 1.2 VSWR for High Performance
A 1.2 maximum VSWR (roughly 21 dB return loss) keeps reflection low across the band for a stable match in demanding system and instrument connections.
▸ True 50 Ω Continuity
The 50 Ω geometry is maintained at every internal diameter change, keeping the line smooth and the reference plane well defined.
▸ Stainless-Steel Body · BeCu Contact
The passivated stainless-steel body resists corrosion and mechanical wear and holds tight dimensional stability at high frequency; spring-tempered beryllium-copper contacts deliver low, stable contact resistance and resist fatigue over many cycles; gold-plated contact surfaces stay free of oxidation so connection resistance remains low after repeated mating.
▸ 90° Form for Dense Panels
A right-angle body is ideal where clearance is limited, routing the connection sideways on crowded front panels without a sharp cable bend.
▸ Built to Last: 500+ Cycles
Rated for at least 500 mate/unmate cycles and an operating span of -55°C to +125°C, it withstands daily bench handling and demanding industrial or outdoor environments.

Applications

This component is widely deployed across RF, microwave and millimeter-wave systems that demand reliable, high-frequency interconnection:

5G / 6G & Wireless Infrastructure Test & Measurement (VNA / Analyzers) Aerospace & Defense SATCOM, Radar & EW Microwave / mmWave Systems R&D Labs & Universities Medical RF Equipment Industrial IoT & Broadcast

Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.

There is €4.99 charge for delivery under €50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
