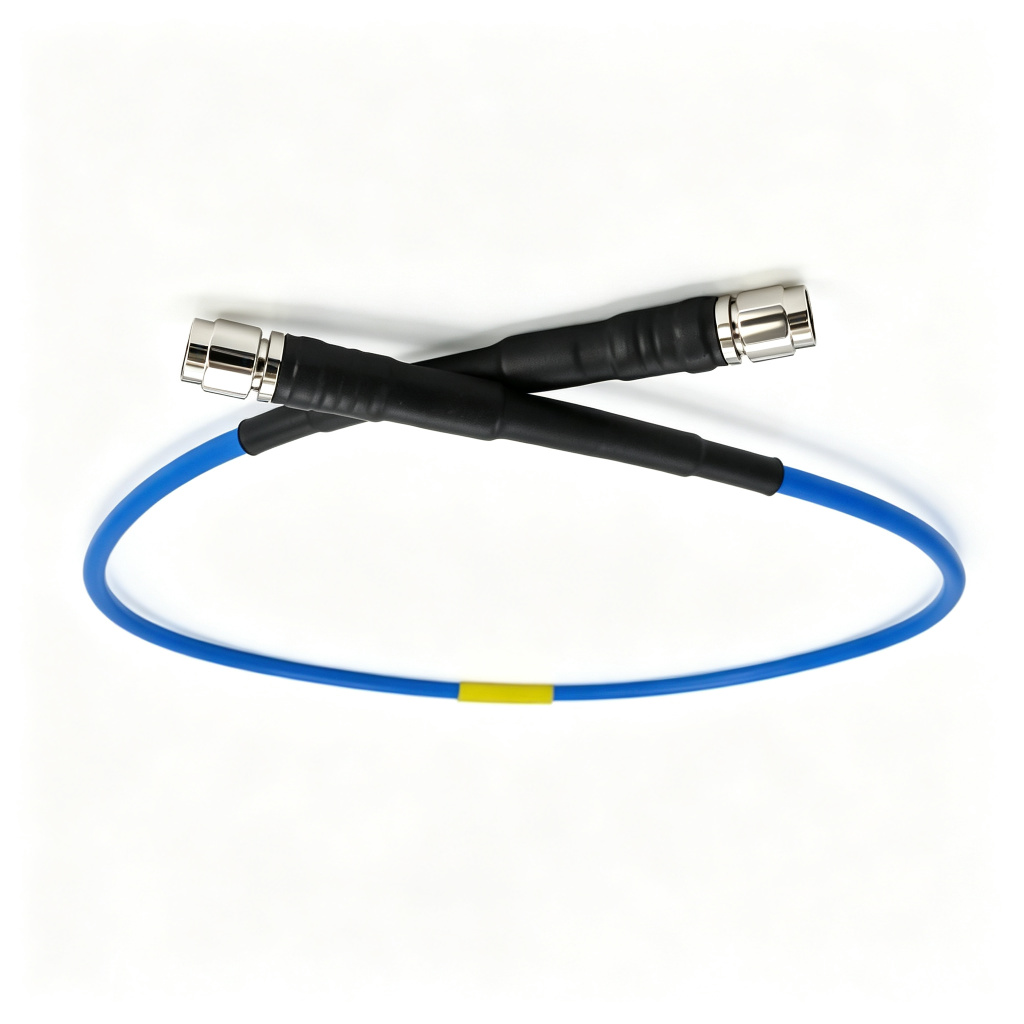

SMA Test Cable M/M Flexible 27Ghz VSWR 1.30 141 Cable 48"
SMA Test Cable M/M Flexible 27Ghz VSWR 1.30 141 Cable 48"

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

PrecisionRF

SMA Test Cable M/M Flexible 27Ghz VSWR 1.3 141 Cable 72" PR1520

SKU: PR1520
(0)
$67.00
In stock
Usually ships within 24 hours

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 210-607-8191

Key Advantages

This SMA Test Cable M/M Flexible is flexible for easy routing for dependable, repeatable transmission across DC - 27 GHz. It is intended for VNA and analyzer hook-ups, rack systems and RF integration where stable loss, matching and mechanical endurance matter.

▸ DC - 27 GHz Through the Microwave Band
A single component replaces several narrow transitions, keeping the RF chain short, well-matched and easy to reconfigure.
▸ Well-Matched at 1.3 Maximum
Controlled to 1.3 (roughly 18 dB return loss), the part limits standing waves and echo, protecting signal integrity in multi-component chains.
▸ Precision 50 Ω Impedance
The 50 Ω geometry is maintained at every internal diameter change, keeping the line smooth and the reference plane well defined.
▸ Easy-Routing Flexible Cable
Flexible construction routes cleanly around chassis features and cable trays while maintaining a stable 50 Ω path to both connectors.
▸ Stable, Repeatable Transmission
Controlled dielectric and precision terminations keep loss and match consistent along the assembly, so the same cable gives the same result test after test.
▸ 500+ Mating Cycles, -55°C to +125°C
A minimum 500-cycle mating life and a wide -55°C to +125°C temperature range keep the RF path stable through repeated use and thermal cycling.

Applications

This component is widely deployed across RF, microwave and millimeter-wave systems that demand reliable, high-frequency interconnection:

5G / 6G & Wireless Infrastructure Test & Measurement (VNA / Analyzers) Aerospace & Defense SATCOM, Radar & EW Microwave / mmWave Systems R&D Labs & Universities Medical RF Equipment Industrial IoT & Broadcast
