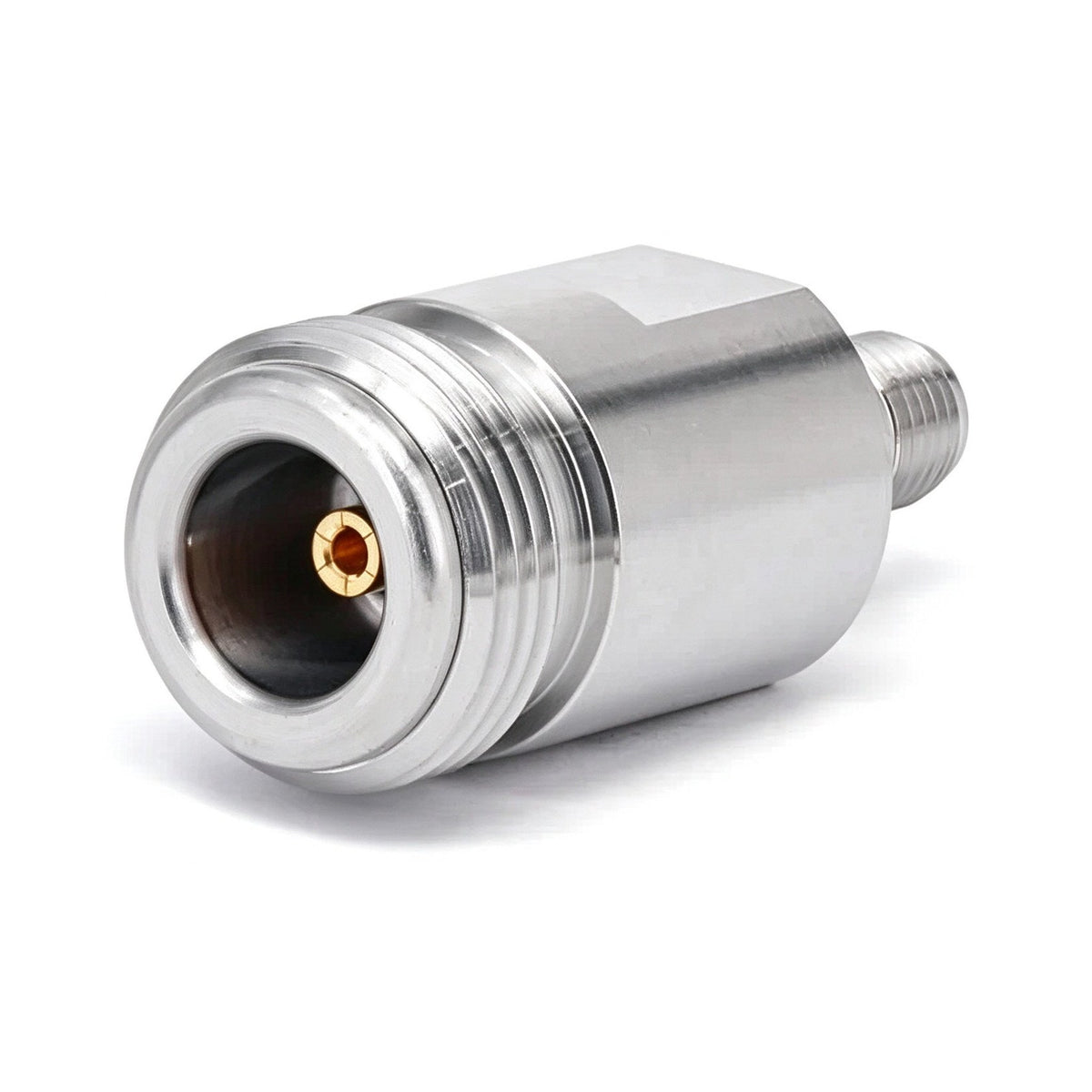

SMA Female to N Female Adapter PR561

SKU: PR561
(0)
$18.50
In stock
Usually ships within 48 hours

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 254-720-5573

Key Advantages

Compact and precisely machined, this SMA Female to N Female adapter carries the signal cleanly across DC - 11 GHz. Designed for engineers who need a dependable match, it suits instrument front-ends, RF systems and bench setups that cannot tolerate drift or sloppy mating.

▸ Reliable DC–11 GHz Operation
Balanced performance across the range makes it a versatile, cost-conscious choice for everyday RF and microwave interconnection.
▸ 1.2 VSWR for High Performance
A 1.2 maximum VSWR (roughly 21 dB return loss) keeps reflection low across the band for a stable match in demanding system and instrument connections.
▸ Consistent 50 Ω Geometry
The 50 Ω geometry is maintained at every internal diameter change, keeping the line smooth and the reference plane well defined.
▸ Machined Brass Body · BeCu Contact
The precision-machined brass body offers good conductivity and excellent value for general RF service; spring-tempered beryllium-copper contacts deliver low, stable contact resistance and resist fatigue over many cycles; a low-loss PTFE dielectric keeps the electrical length stable and dielectric loss low.
▸ Short, Well-Centered Transition
The compact coaxial transition aligns both interfaces on one axis for a centered contact and clean, repeatable mate.
▸ 500-Cycle Durability, -55°C to +125°C
Rated for at least 500 mate/unmate cycles and an operating span of -55°C to +125°C, it withstands daily bench handling and demanding industrial or outdoor environments.

Applications

This component is widely deployed across RF, microwave and millimeter-wave systems that demand reliable, high-frequency interconnection:

5G / 6G & Wireless Infrastructure Test & Measurement (VNA / Analyzers) Aerospace & Defense SATCOM, Radar & EW Microwave / mmWave Systems R&D Labs & Universities Medical RF Equipment Industrial IoT & Broadcast
