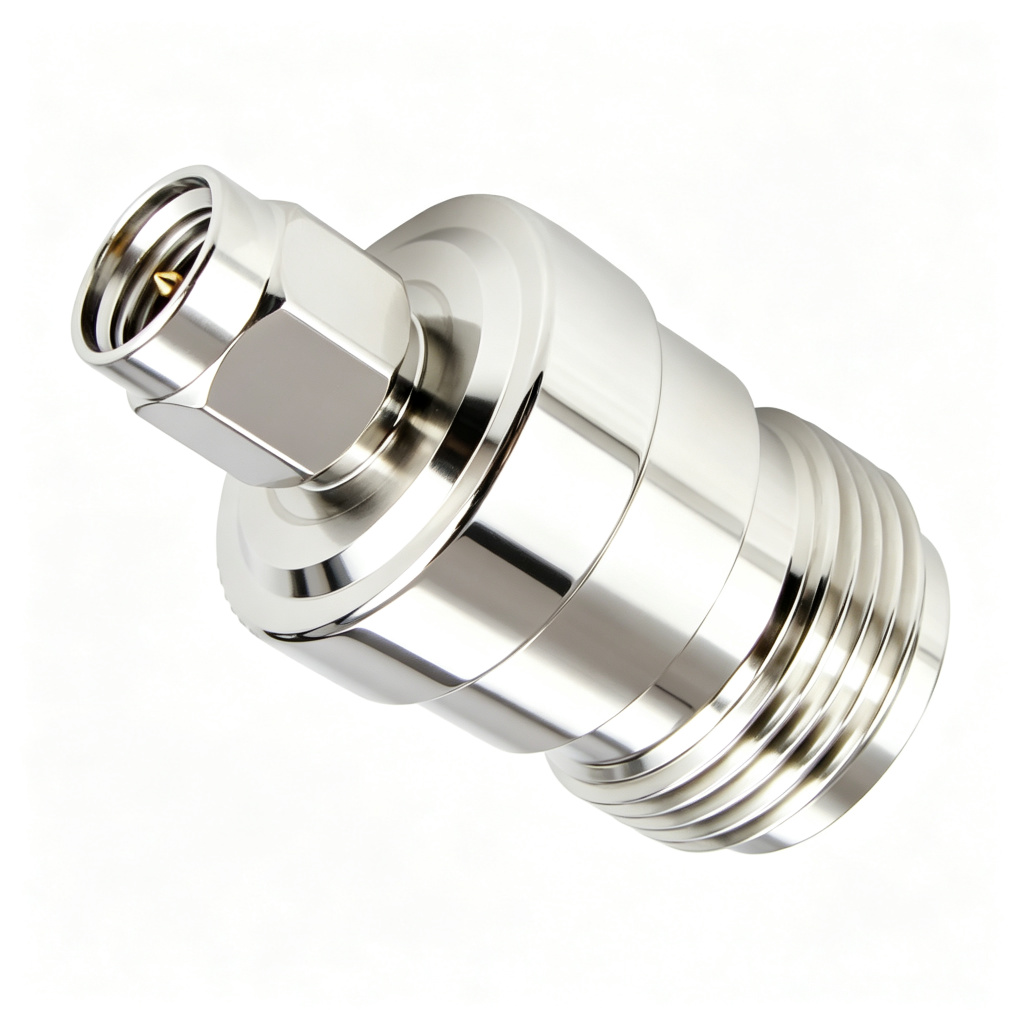

SMA Male to N Female Adapter 11Ghz VSWR 1.15 S Steel
SMA Male to N Female Adapter 11Ghz VSWR 1.15 S Steel

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

PrecisionRF

SMA Male to N Female Adapter PR584

SKU: PR584
(0)
$5.90
In stock
Usually ships within 24 hours

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 210-607-8191

Key Advantages

Compact and precisely machined, this SMA Male to N Female adapter carries the signal cleanly across DC - 11 GHz. The result is a dependable link for test instrumentation, microwave systems and production fixtures, with consistent results mating after mating.

▸ Reliable DC–11 GHz Operation
The broadband design serves multiple radios and instruments in one reliable part, with stable behavior through the lower microwave bands.
▸ Measurement-Grade 1.15 VSWR
Holding VSWR to 1.15 or better (roughly 23 dB return loss) keeps return loss high so cascaded stages stay stable and calibration holds.
▸ Consistent 50 Ω Geometry
A continuous 50 Ohm profile through the transition minimizes impedance mismatch and insertion loss, preserving amplitude and phase integrity of the signal.
▸ Stainless-Steel Body · BeCu Contact
The passivated stainless-steel body resists corrosion and mechanical wear and holds tight dimensional stability at high frequency; spring-tempered beryllium-copper contacts deliver low, stable contact resistance and resist fatigue over many cycles; gold-plated contact surfaces stay free of oxidation so connection resistance remains low after repeated mating.
▸ Short, Well-Centered Transition
The compact coaxial transition aligns both interfaces on one axis for a centered contact and clean, repeatable mate.
▸ Built to Last: 500+ Cycles
With 500+ durable cycles and operation from -55°C to +125°C, it is built for long service in aerospace, field and laboratory conditions.

Applications

This component is widely deployed across RF, microwave and millimeter-wave systems that demand reliable, high-frequency interconnection:

5G / 6G & Wireless Infrastructure Test & Measurement (VNA / Analyzers) Aerospace & Defense SATCOM, Radar & EW Microwave / mmWave Systems R&D Labs & Universities Medical RF Equipment Industrial IoT & Broadcast
