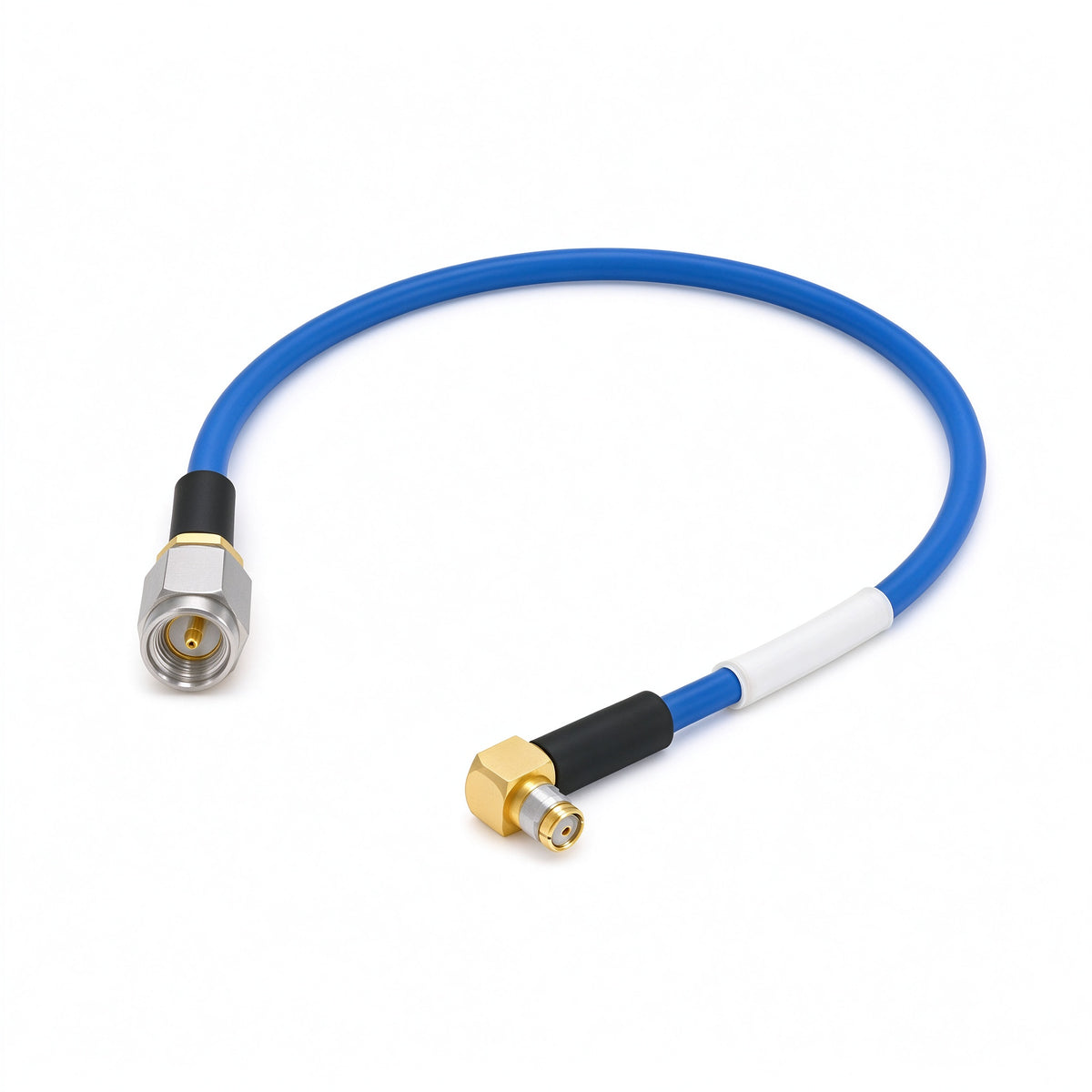

SMA Male to SMP Female RA 27Ghz Flexible Cable 061 VSWR 1.35 24" PR898

SKU: PR898
(0)
$65.00
In stock
Usually ships within 24 hours

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 210-607-8191

Key Advantages

Factory-terminated and flexible for easy routing, this SMA Male to SMP Female RA Flexible Cable assembly delivers a stable, well-matched link across DC - 27 GHz. It is intended for VNA and analyzer hook-ups, rack systems and RF integration where stable loss, matching and mechanical endurance matter.

▸ DC-to-27 GHz Coverage
A single component replaces several narrow transitions, keeping the RF chain short, well-matched and easy to reconfigure.
▸ Predictable 1.35 Maximum VSWR
A defined 1.35 maximum VSWR (roughly 17 dB return loss) gives a predictable, repeatable match suited to general RF links where value matters as much as absolute precision.
▸ Consistent 50 Ω Geometry
The 50 Ω geometry is maintained at every internal diameter change, keeping the line smooth and the reference plane well defined.
▸ Flexible, Routable Construction
The cable balances flexibility with mechanical strength, so it follows the required route without sharp bends or strain at the terminations.
▸ Stable, Repeatable Transmission
Controlled dielectric and precision terminations keep loss and match consistent along the assembly, so the same cable gives the same result test after test.
▸ Built to Last: 500+ Cycles
A minimum 500-cycle mating life and a wide -55°C to +125°C temperature range keep the RF path stable through repeated use and thermal cycling.

Applications

This component is widely deployed across RF, microwave and millimeter-wave systems that demand reliable, high-frequency interconnection:

5G / 6G & Wireless Infrastructure Test & Measurement (VNA / Analyzers) Aerospace & Defense SATCOM, Radar & EW Microwave / mmWave Systems R&D Labs & Universities Medical RF Equipment Industrial IoT & Broadcast

Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.

There is €4.99 charge for delivery under €50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
