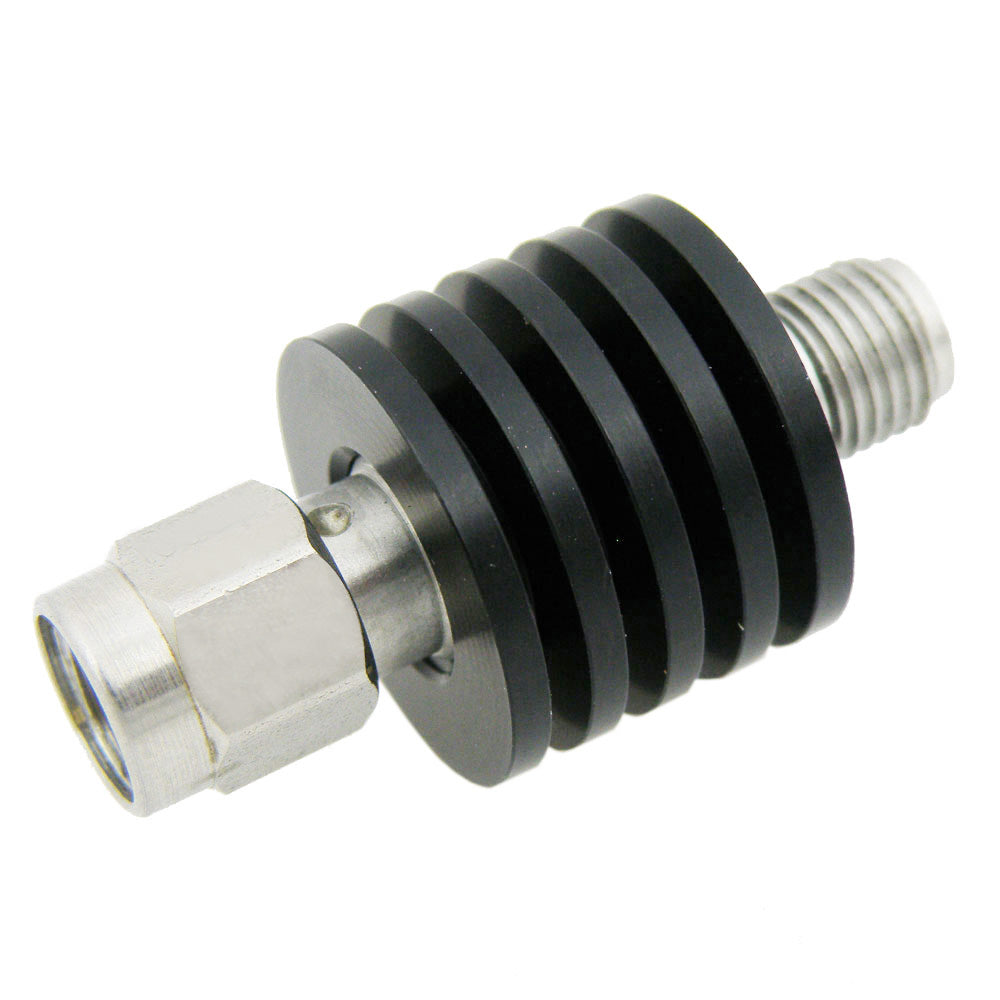

PRFATTSMA185W-XX SMA Attenuator 18GHz 5 Watt 0-30 db VSWR=1.35 Max
Couldn't load pickup availability
Ready to work out of the box!
All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!
Got questions?
Feel free to get in touch
Ask an expert!
PRFATTSMA185W-XX（Click PDF for Spec）
SMA Attenuator 18GHz 5 Watt VSWR=1.35 Max
| Parameter | Value |
|---|---|
| Impedance | 50 ohm |
| Frequency | 18 GHz |
| VSWR | 1.35 MAX |
| Power Handling | 5 Watt at 25°C |
| Temperature Range | -40 ---+125°C |
| Part Number |
DB Value |
|---|---|
| PRFATTSMA185W-01 | 1 db |
| PRFATTSMA185W-02 | 2 db |
| PRFATTSMA185W-03 | 3 db |
| PRFATTSMA185W-04 | 4 db |
| PRFATTSMA185W-05 | 5 db |
| PRFATTSMA185W-06 | 6 db |
| PRFATTSMA185W-08 | 8 db |
| PRFATTSMA185W-09 | 9 db |
| PRFATTSMA185W-10 | 10 db |
| PRFATTSMA185W-11 | 11 db |
| PRFATTSMA185W-12 | 12 db |
| PRFATTSMA185W-15 | 15 db |
| PRFATTSMA185W-20 | 20 db |
| PRFATTSMA185W-30 | 30 db |
