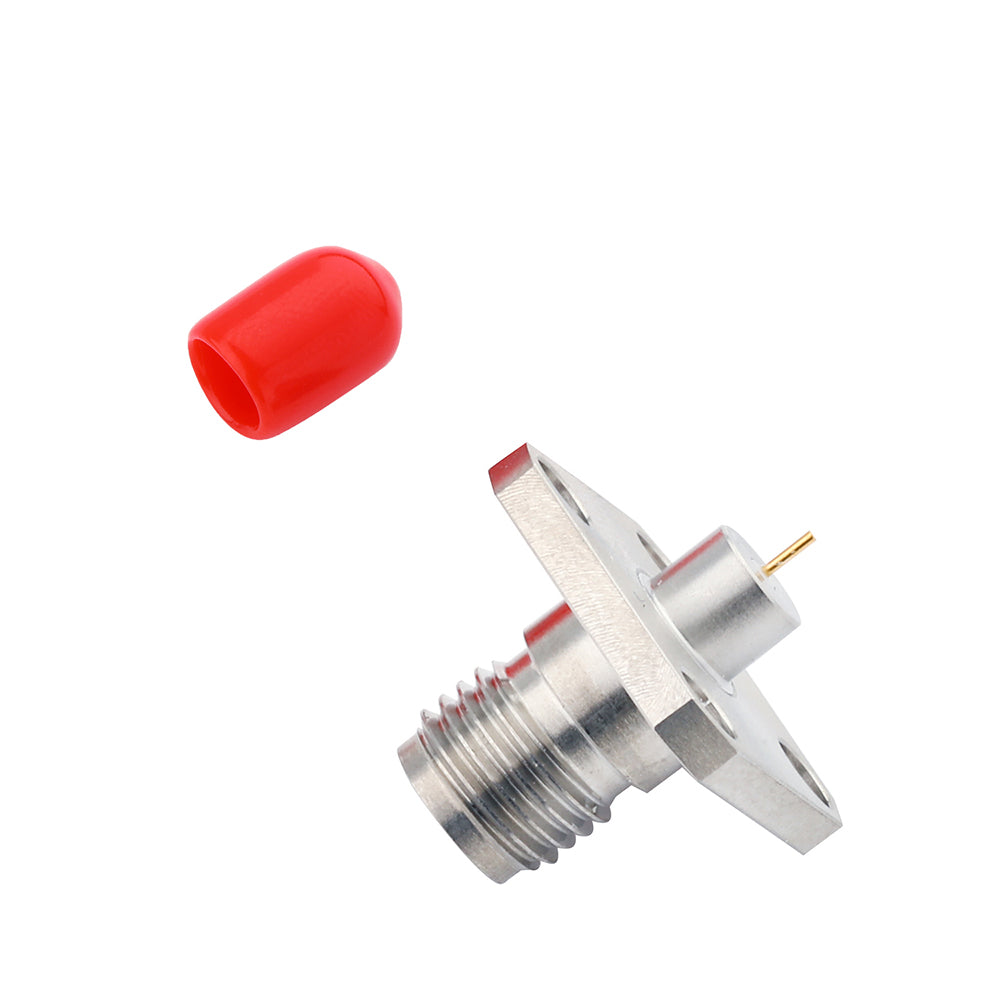

SMA Female Bulkhead 0.5'' Square Flange Solder Connector PR550M0101F01

• Part Number: PR550M0101F01

• Technical Performance                        Material/Plating

• Impedance：50Ω                                 Body： SS Passivated SUS303

• Frequency：DC~27GHz                      Contact: Becu Gold Plating

• VSWR：                                                      Insulator: PTFE&PEI

• DC~18GHzꞏꞏꞏꞏ 1.10:1（MAX）

• 18GHz~40GHz···· 1.15:1（MAX）

• Contact Resistance：

• Center Contact≤3.0mΩ

• Outer Contact ≤2.0mΩ

• Insulation Resistance：≥3000MΩ

• Withstand Voltage：750V

• Cycles：500 times

• Temperature Range：-55~+165℃
