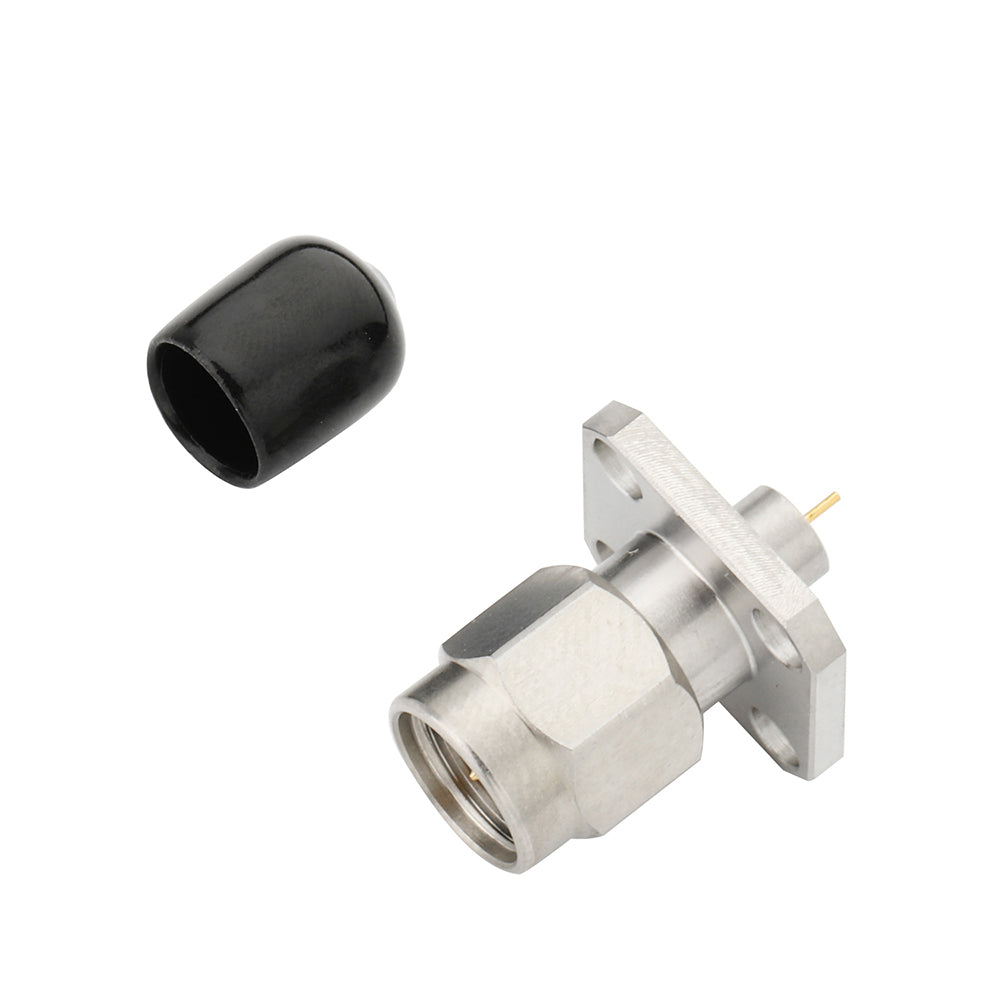

SMA Male 4 hole Bulkhead 0.500'' Square Flange Solder Connector PR551M0202F01
Couldn't load pickup availability
Ready to work out of the box!
All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!
Got questions?
Feel free to get in touch
Ask an expert!
-
Part Number: PR551M0202F01
-
Technical Performance Material/Plating
-
Impedance：50Ω Body： SS Passivated SUS303
-
Frequency：DC~27GHz Contact: Becu Gold Plating
-
VSWR： Insulator: PTFE&PEI
-
DC~18GHzꞏꞏꞏꞏ 1.10:1（MAX）
-
18GHz~40GHz···· 1.15:1（MAX）
-
Contact Resistance：
-
Center Contact≤3.0mΩ
-
Outer Contact ≤2.0mΩ
-
Insulation Resistance：≥3000MΩ
-
Withstand Voltage：750V
-
Cycles：500 times
-
Temperature Range：-55~+165℃
