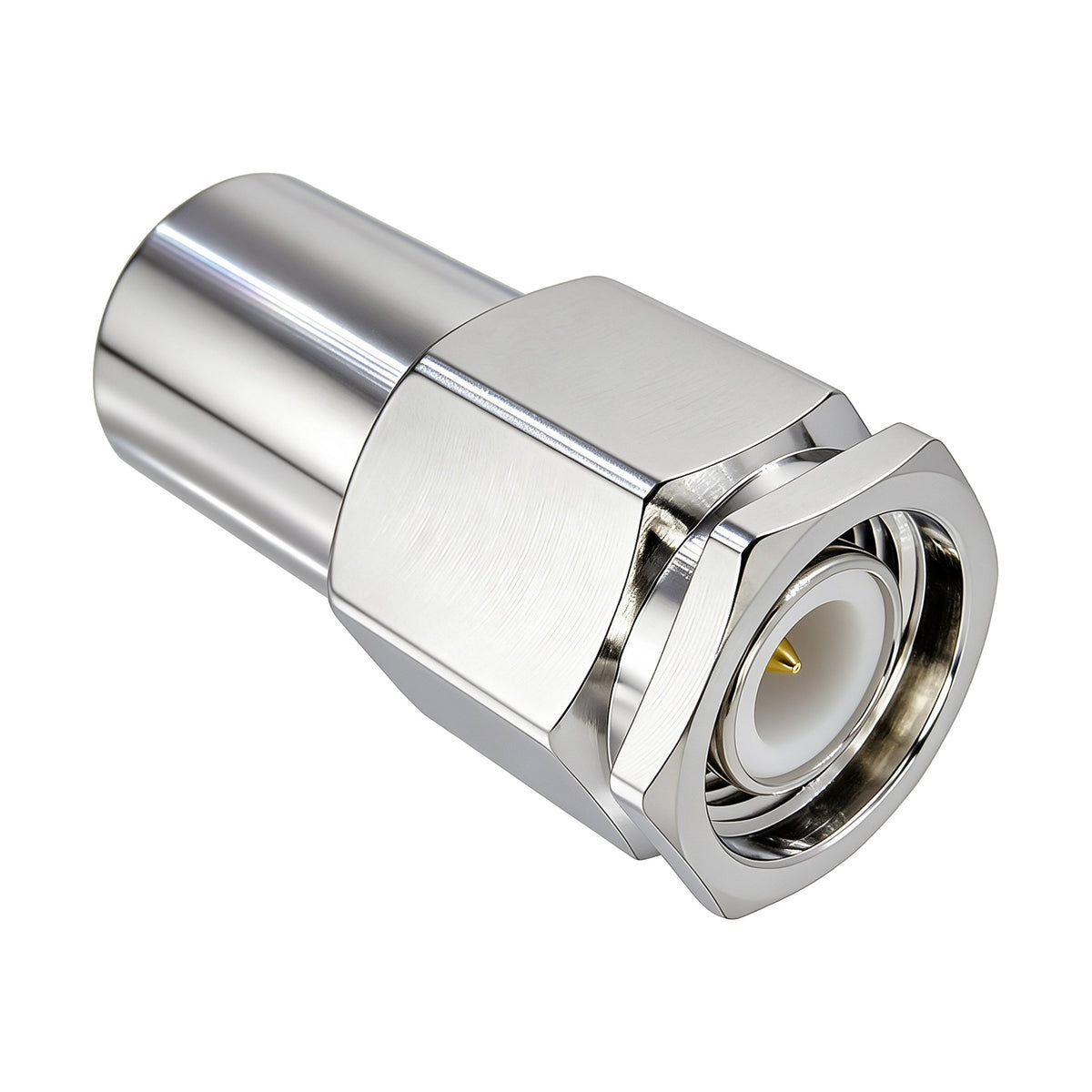

TNC Male Brass Coaxial Termination 2W 18GHz PRF-TER-103
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Ask an expert!
Key Advantages
The PRF-TER-103 is a precision TNC male coaxial termination rated DC - 18 GHz, handling 2W with a maximum VSWR of 1.35:1. It gives unused test and equipment ports a clean, well-matched 50 ohm load.
One part covers DC - 18 GHz, spanning the full TNC band. A single termination handles bench calibration, system spares and port protection, so you are not caught with an under-rated load when test frequencies move higher.
The 1.35:1 maximum VSWR keeps return loss low and the response flat, so measurements stay close to simulation. The precision resistive element holds a consistent 50 ohm load across the full band.
The precision male interface mates repeatably with TNC jacks. Tight interface geometry keeps alignment and contact resistance stable through repeated connections.
The gold-plated brass body is smooth, conductive and corrosion resistant, giving a consistent fit and finish for everyday bench and system use.
A gold-plated beryllium copper contact delivers low, stable contact resistance and resists oxidation, preserving the 50 ohm match and signal integrity over the service life of the part.
The compact, low-profile body safely absorbs 2W while fitting crowded front panels and portable test kits without stressing the mating connector.
Applications
