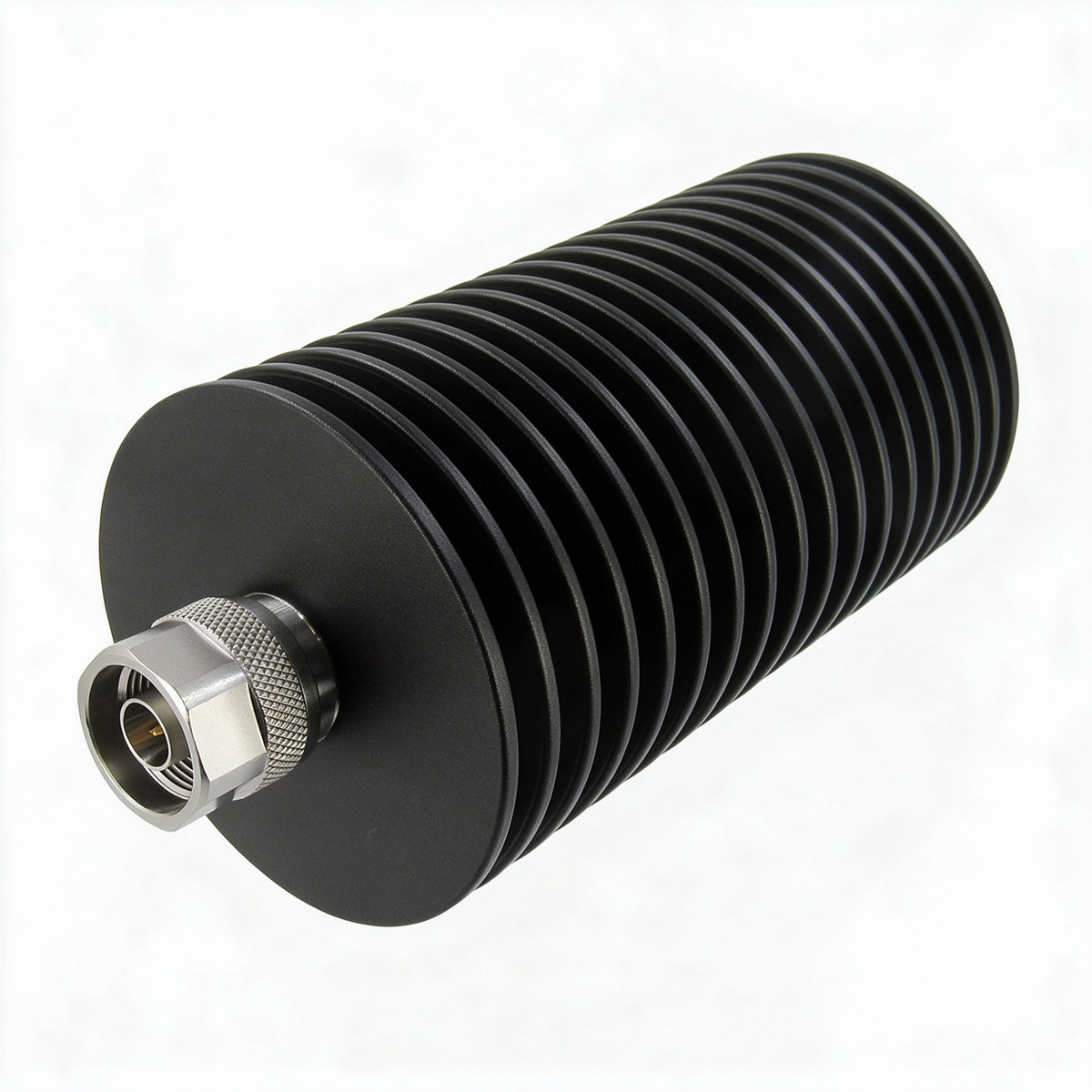

Type N Male to Female Attenuator, DC-18 GHz, 100 W, 15 dB
Type N Male to Female Attenuator, DC-18 GHz, 100 W, 15 dB

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

PrecisionRF

Type N Male to Female Attenuator, DC-18 GHz, 100 W, PR2022

SKU: PR2022
(0)
$899.00
In stock
Usually ships within 48 hours
Attenuation

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 254-720-5573

Key Advantages

Engineered for dependable broadband level control, this Type N male-to-female part provides 15 dB general-purpose attenuation from DC to 18 GHz while handling 100 watts in a large finned heat-sink body. The controlled-impedance element and a bidirectional, reciprocal network that can be installed either way keep VSWR low and attenuation stable, suiting receiver protection, gain setting and instrument input conditioning.

▸ 100-Watt Finned Cooling Body
The 100 W design uses a finned metal housing to manage heat rather than relying on the connectors, delivering dependable medium-to-high power attenuation in a passively cooled in-line part.
▸ 15 dB General-Purpose Attenuation
At 15 dB this attenuator delivers a useful one-to-two-decade power reduction while maintaining a matched 50 Ohm path, suiting routine bench, ATE and in-system level control.
▸ DC–18 GHz Broadband Rating
The internal coaxial element is kept short and controlled to deliver a smooth response across DC–18 GHz, keeping attenuation flat and VSWR low across the full microwave band through Ku.
▸ Rugged Type N Threaded Interface
Type N's robust coupling and larger contacts support the power rating and repeated mating typical of base-station, bench and industrial RF use, while maintaining a clean 50 Ohm match to 18 GHz.
▸ Bidirectional – Install Either Way
Bidirectional operation removes orientation concerns on the bench or in production; the same matched 50 Ohm performance is presented in both directions across DC–18 GHz.
▸ Passivated Stainless-Steel Body
Stainless construction gives mechanical ruggedness and a stable thermal platform, so the part maintains its electrical performance across wide temperature swings and repeated handling.

Applications

This attenuator is widely deployed across RF and microwave systems that demand accurate, repeatable signal-level control and a well-matched 50 Ohm path:

Test & Measurement (VNA / RF Labs) Signal Level & Gain Control Receiver & Front-End Protection 5G / Telecom Infrastructure Aerospace, Defense & Radar SATCOM & Microwave Links Amplifier & Transmitter Matching EMC Test & RF Evaluation
