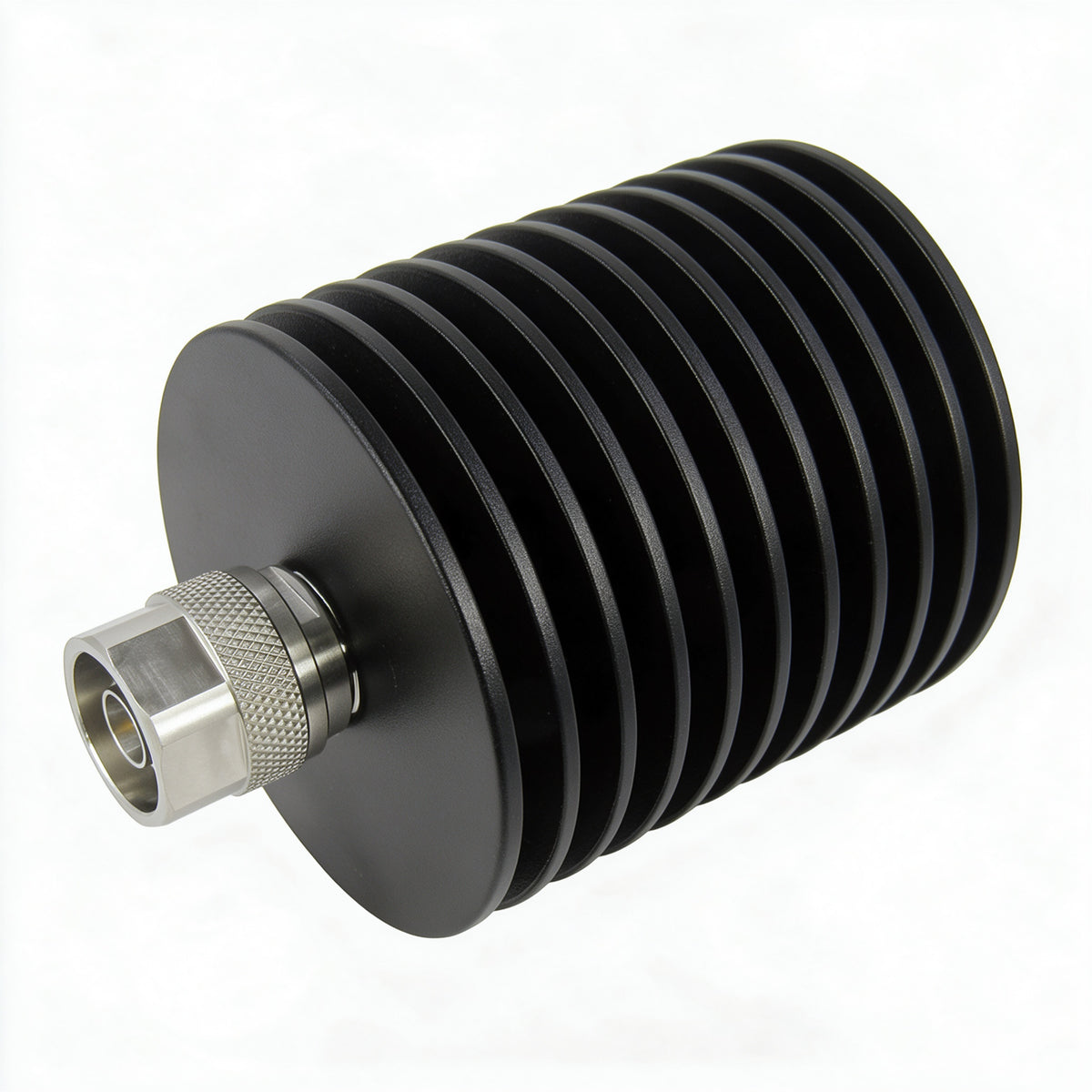

Type N Male to Female Attenuator, DC-18 GHz, 50 W, 30 dB
Type N Male to Female Attenuator, DC-18 GHz, 50 W, 30 dB

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

PrecisionRF

Type N Male to Female Attenuator, DC-18 GHz, 50 W, PR2013

SKU: PR2013
(0)
$399.00
In stock
Usually ships within 48 hours
Attenuation

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 254-720-5573

Key Advantages

This PrecisionRF Type N attenuator combines a large finned heat-sink housing with high 30 dB rejection performance over DC–18 GHz at up to 50 watts. It is a bidirectional, reciprocal network that can be installed either way, giving engineers a repeatable way to set signal level, protect sensitive front-ends and improve source/load match in benchtop, ATE and in-system RF chains.

▸ Robust 50 W Heat-Sink Construction
Rated at 50 watts, the cylindrical finned body provides the extra surface area needed to keep the attenuation element cool, so the part holds its nominal dB value and return loss under load during natural-convection operation.
▸ 30 dB Overload & Leakage Protection
The 30 dB value provides deep attenuation for overload protection, harmonic/leakage suppression and bringing very high-level sources down into a detector or instrument's linear range, all in a single matched in-line part.
▸ Dc-To-18 Ghz Wide Microwave Band Coverage
Rated continuously from DC to 18 GHz, one part covers the full microwave band through Ku, so a single SKU serves multiple bands and reduces the number of variants held in stock.
▸ Type N for Power & Mechanical Strength
The Type N threaded interface is valued for mechanical strength, weather resistance and secure coupling, making this 50 W attenuator well suited to high-power, outdoor and vibration-prone applications.
▸ Fully Reciprocal Bidirectional Use
The passive in-line network is reciprocal, so it can be installed with either port facing the source without changing attenuation, VSWR or power handling—simplifying stocking and assembly.
▸ Stainless Body for Stability & Ruggedness
The passivated stainless-steel body resists corrosion and thread wear while holding tight dimensional stability, keeping the 50 Ohm geometry and attenuation value repeatable through heavy mating cycles.

Applications

This attenuator is widely deployed across RF and microwave systems that demand accurate, repeatable signal-level control and a well-matched 50 Ohm path:

Test & Measurement (VNA / RF Labs) Signal Level & Gain Control Receiver & Front-End Protection 5G / Telecom Infrastructure Aerospace, Defense & Radar SATCOM & Microwave Links Amplifier & Transmitter Matching EMC Test & RF Evaluation
